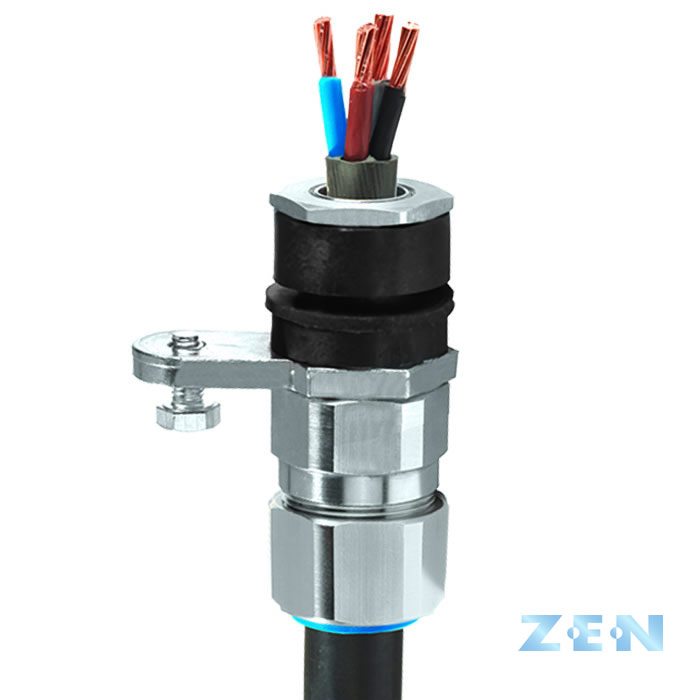

B324 | Insulated Cable Gland For all types of Steel & Aluminium Wire Armoured Cables
We'd like to keep in touch
We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.
Insulated Industrial Cable Gland
• High quality durable materials
• Robust, heavy duty insulated design
• Metal-to-metal armour clamping
• Permanently crimped, low impedance earth termination
• Secure against self-loosening
• Direct & remote installation
• Enables zoning of earthed neutral systems
• Eliminates circulating currents
• High capacity external earth connection (B324)
• Third party short circuit tested
• Controlled outer ‘load retention’ seal
• Unique OSTG prevents overtightening
• -60°C to +130°C
• EMC tested
Note: Earth Tags can only be fitted to the B348 & A348 ZEN Cable Gland types.
The Symmetrical Fault Current (kA) rating for 1 second applicable to the Cast Integral Earth Lug featured in the B324 and A324 products are as follows:
• 26.0 kA for Cable Gland sizes up to 40
• 43.0 kA for Cable Gland sizes 50S and above
Please refer to the CMP CW CIEL product page for dimensional details of the Cast Integral Earth Lug feature included in the B324 and A324 designs.
Aluminium version available for AWA cables. When ordering please substitute letter B in B324 & B348 with letter A.
For under / oversized armour wires click here
| Type | B324 |
| Design Specification | BS 6121:Part 1:1989, IEC 62444, EN 62444, GDCD 190 |
| Mechanical Classifications* | Impact = Level 8, Retention = Class D |
| Enclosure Protection | IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only |
| Electrical Classifications* | Category C (B324) |
| GOST R Certificate | POCC.GB.HA46.H00140 |
| Ingress Protection Rating ** | IP66 |
| Cable Gland Material | Brass, Nickel Plated Brass, Aluminium, Stainless Steel |
| Seal Material | CMP Thermoset Rubber |
| Cable Type | Single Wire Armour (SWA), Aluminium Wire Armour (AWA) |
| Armour Clamping | Three Part Armour Lock With AnyWay Universal Clamping Ring |
| Sealing Technique | Unique CMP ‘LRS’ Outer Seal (Load Retention Seal) |
| Sealing Area(s) | Cable Outer Sheath |
| Optional Accessories | Locknuts, Earth Tags, Serrated Washers, Entry Thread Seals, Shrouds,Ingress Discs |
| Optional Installation Tools | Spanners, Armour Former Tool |
Note : * Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444
** Refer to Maintaining a Seal for further information on Ingress Protection Ratings
Certificates
Product Selection Table
Click here to view how to order
| Cable Gland Size | Clearance Hole Diameter "C" | Cable Bedding Diameter "A" | Overall Cable Diameter "B" | Armour Range | Across Flats "D" | Across Corners "D" | Protrusion Length "F" | Ordering Reference (Brass Metric) | Cable Gland Weight (Ozs) | ||
| Max | Min | Max | Min | Max | With CIEL Lug (B324) | ||||||
| 20S | 0.81 | 0.46 | 0.37 | 0.63 | 0.03 | 0.05 | 0.94 | 1.04 | 2.31 | 20SB3241RA | 5.64 |
| 20 | 0.81 | 0.55 | 0.49 | 0.82 | 0.03 | 0.05 | 1.20 | 1.32 | 2.36 | 20B3241RA | 7.76 |
| 25S | 1.01 | 0.78 | 0.55 | 0.87 | 0.05 | 0.06 | 1.48 | 1.63 | 2.72 | 25SB3241RA | 11.99 |
| 25 | 1.01 | 0.78 | 0.72 | 1.03 | 0.05 | 0.06 | 1.48 | 1.63 | 2.72 | 25B3241RA | 11.99 |
| 32 | 1.28 | 1.03 | 0.93 | 1.33 | 0.06 | 0.08 | 1.81 | 1.99 | 2.66 | 32B3241RA | 15.52 |
| 40 | 1.60 | 1.26 | 1.10 | 1.59 | 0.06 | 0.08 | 2.17 | 2.38 | 2.88 | 40B3241RA | 25.04 |
| 50S | 2.00 | 1.5 | 1.39 | 1.84 | 0.08 | 0.10 | 2.36 | 2.60 | 2.84 | 50SB3241RA | 28.92 |
| 50 | 2.00 | 1.73 | 1.59 | 2.09 | 0.08 | 0.10 | 2.76 | 3.04 | 2.92 | 50B3241RA | 37.39 |
| 63S | 2.51 | 1.96 | 1.8 | 2.34 | 0.08 | 0.10 | 2.95 | 3.25 | 3.39 | 63SB3241RA | 53.26 |
| 63 | 2.51 | 2.2 | 2.15 | 2.59 | 0.08 | 0.10 | 3.15 | 3.46 | 3.39 | 63B3241RA | 53.97 |
| 75S | 2.98 | 2.44 | 2.32 | 2.83 | 0.08 | 0.10 | 3.54 | 3.90 | 3.80 | 75SB3241RA | 74.08 |
| 75 | 2.98 | 2.67 | 2.63 | 3.09 | 0.10 | 0.12 | 3.94 | 4.33 | 3.75 | 75B3241RA | 92.42 |
| 90 | 3.57 | 2.94 | 3.00 | 3.56 | 0.12 | 0.16 | 4.48 | 4.98 | 4.24 | 90B3241RA | 131.92 |
| Dimensions displayed in inches unless otherwise stated | |||||||||||
| Cable Gland Size | Clearance Hole Diameter "C" | Cable Bedding Diameter "A" | Overall Cable Diameter "B" | Armour Range | Across Flats "D" | Across Corners "D" | Protrusion Length "F" | Ordering Reference (Brass Metric) | Cable Gland Weight (Kgs) | ||
| Max | Min | Max | Min | Max | With CIEL Lug (B324) | ||||||
| 20S | 20.6 | 11.6 | 9.5 | 15.9 | 0.8 | 1.25 | 24.0 | 26.4 | 58.6 | 20SB3241RA | 0.16 |
| 20 | 20.6 | 13.9 | 12.5 | 20.9 | 0.8 | 1.25 | 30.5 | 33.6 | 59.9 | 20B3241RA | 0.22 |
| 25S | 25.6 | 19.9 | 14.0 | 22.0 | 1.25 | 1.6 | 37.5 | 41.3 | 69.1 | 25SB3241RA | 0.34 |
| 25 | 25.6 | 19.9 | 18.2 | 26.2 | 1.25 | 1.6 | 37.5 | 41.3 | 69.1 | 25B3241RA | 0.34 |
| 32 | 32.6 | 26.2 | 23.7 | 33.9 | 1.6 | 2.0 | 46.0 | 50.6 | 67.6 | 32B3241RA | 0.44 |
| 40 | 40.6 | 32.1 | 27.9 | 40.4 | 1.6 | 2.0 | 55.0 | 60.5 | 73.1 | 40B3241RA | 0.71 |
| 50S | 50.7 | 38.1 | 35.2 | 46.7 | 2.0 | 2.5 | 60.0 | 66.0 | 72.1 | 50SB3241RA | 0.82 |
| 50 | 50.7 | 44.0 | 40.4 | 53.0 | 2.0 | 2.5 | 70.1 | 77.1 | 74.2 | 50B3241RA | 1.06 |
| 63S | 63.7 | 49.9 | 45.6 | 59.4 | 2.0 | 2.5 | 75.0 | 82.5 | 86.2 | 63SB3241RA | 1.51 |
| 63 | 63.7 | 55.9 | 54.6 | 65.8 | 2.0 | 2.5 | 80.0 | 88.0 | 86.1 | 63B3241RA | 1.53 |
| 75S | 75.7 | 61.9 | 59.0 | 72.0 | 2.0 | 2.5 | 90.0 | 99.0 | 96.5 | 75SB3241RA | 2.10 |
| 75 | 75.7 | 67.9 | 66.7 | 78.4 | 2.5 | 3.0 | 100.0 | 110 | 95.3 | 75B3241RA | 2.62 |
| 90 | 90.8 | 74.9 | 76.2 | 90.3 | 3.15 | 4.0 | 114.0 | 126.5 | 107.6 | 90B3241RA | 3.74 |
| Dimensions displayed in millimeters unless otherwise stated | |||||||||||
Generic Cable Considerations
Unarmoured Cables When cable glands are designed to suit a range of different cable types they will often provide basic sealing and mechanical retention through the use of a sealing ring on the cable outer sheath, for example, in the case of an unarmoured or screened cable. Cable gland solutions for unarmoured cable would need to cater for a reasonable acceptance range so that the most popular cables fit comfortably within the minimum to maximum range.
Read moreZEN Insulated Cable Glands
ZEN is available with an insulating arrangement to ensure that no contact is made between the earth circuit carried through the cable armour and the electrical enclosure which the cable enters. This isolation of the cable armour at one end of the cable is sometimes referred to as single point earthing. The ZEN range from CMP however allows more than a single point of earthing and delivering optimum safety.
Read moreSheath Material Mechanical Properties
When specifying, selecting, evaluating or assessing cables, the type of material used for the sheathing should always be taken into account. Some of the standards mentioned above have very specific requirements for the tensile strength of cable sheathing, and in some cases these may be less than that required by IEC 60079-14.
Read moreVisit our Knowledge Base for technical expertise and advice, gathered over CMP's 60+ years' experience in the art of terminating cable glands.
