Cleat Fixing Packs

Example ordering codes

CFP02M12080BZP
Product TypeQuantityBolt Thread SizeBolt LengthMaterial
CLEAT FIXING PACK EXAMPLE ORDERING CODES
PRODUCT TYPEQUANTITYBOLT THREAD SIZEBOLT LENGTHMATERIAL
CFPCleat Fixing Pack012 Digit Value*M10Thread Size**0803 Digit Value***A4Grade A4 Stainless Steel
02M12BZPBright Zinc Plated

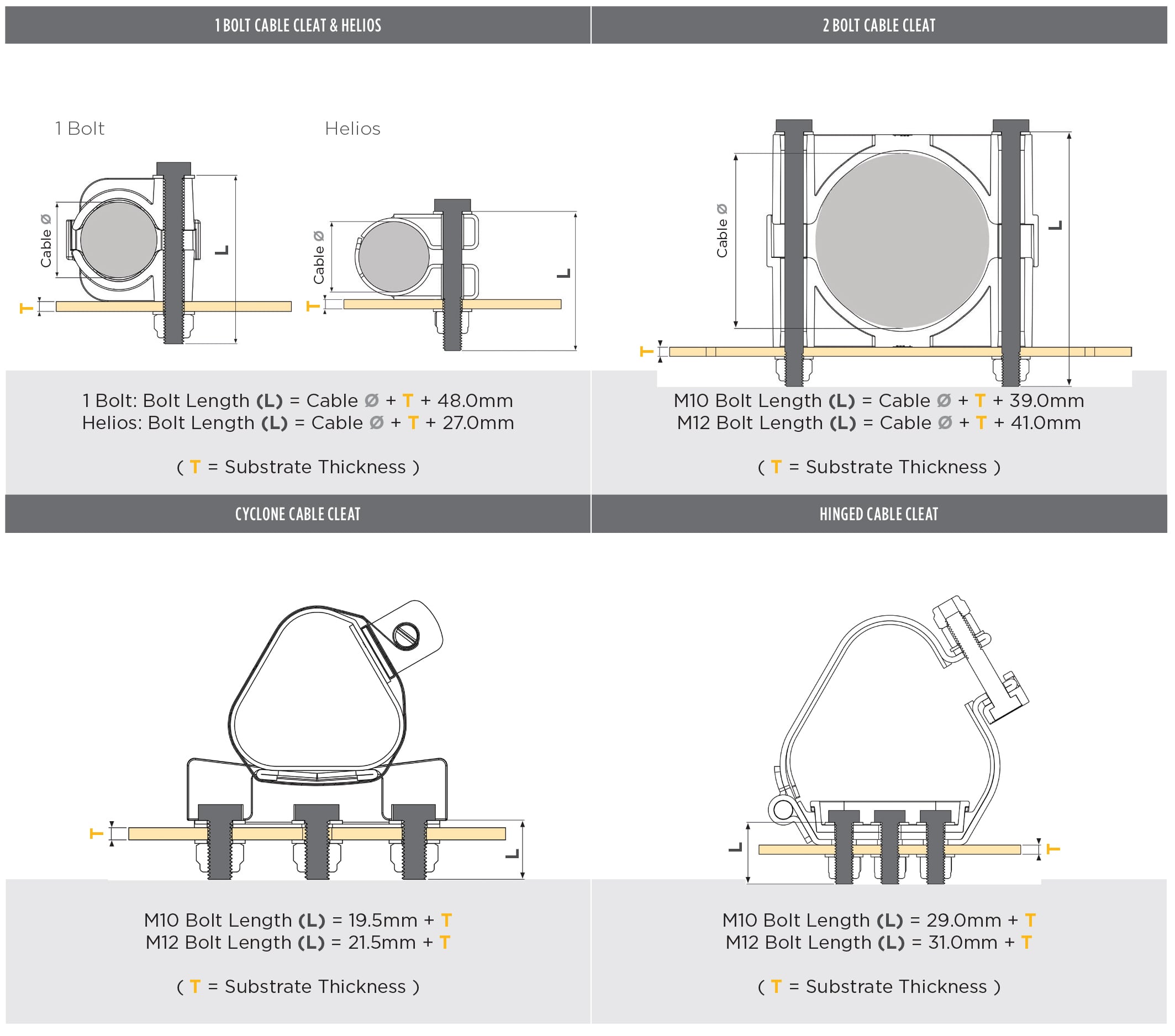

* 01 x Cleat Fixing Pack includes: 1 Bolt, 2 x FORM A Washer, 1 Nyloc Nut 02 x Cleat Fixing Pack includes: 2 Bolt, 4 x FORM A Washer, 2 Nyloc Nut ** M10 / M12 Standard *** Min Bolt length (L) should be calculated using equation, standard increments of 5 (see below) If an insulation pad is required then add 2mm onto length of bolt. Bespoke fixings available on request.

Note: See standard bolt lengths on page 65. Always round up to nearest whole number. Fixings can be ordered as packs or individually. Any queries please contact CMP.

INDIVIDUAL ORDERING CODES
25MM SET SCREWM10X025FTA4M10X025FTBZPM12X025FTA4M12X025FTBZP
30MM SET SCREWM10X030FTA4M10X030FTBZPM12X030FTA4M12X030FTBZP
35MM SET SCREWM10X035FTA4M10X035FTBZPM12X035FTA4M12X035FTBZP
40MM SET SCREWM10X040FTA4M10X040FTBZPM12X040FTA4M12X040FTBZP
45MM SET SCREWM10X045FTA4M10X045FTBZPM12X045FTA4M12X045FTBZP
50MM SET SCREWM10X050FTA4M10X050FTBZPM12X050FTA4M12X050FTBZP
55MM SET SCREWM10X055FTA4M10X055FTBZPM12X055FTA4M12X055FTBZP
60MM SET SCREWM10X060FTA4M10X060FTBZPM12X060FTA4M12X060FTBZP
65MM SET SCREWM10X065FTA4M10X065FTBZPM12X065FTA4M12X065FTBZP
70MM SET SCREWM10X070FTA4M10X070FTBZPM12X070FTA4M12X070FTBZP
75MM SET SCREWM10X075FTA4M10X075FTBZPM12X075FTA4M12X075FTBZP
80MM SET SCREWM10X080FTA4M10X080FTBZPM12X080FTA4M12X080FTBZP
90MM SET SCREWM10X090FTA4M10X090FTBZPM12X090FTA4M12X090FTBZP
100MM SET SCREWM10X100FTA4M10X100FTBZPM12X100FTA4M12X100FTBZP
110MM SET SCREWM10X110FTA4M10X110FTBZPM12X110FTA4M12X110FTBZP
120MM SET SCREWM10X120FTA4M10X120FTBZPM12X120FTA4M12X120FTBZP
130MM SET SCREWM10X130FTA4M10X130FTBZPM12X130FTA4M12X130FTBZP
140MM SET SCREWM10X140FTA4M10X140FTBZPM12X140FTA4M12X140FTBZP
150MM SET SCREWM10X150FTA4M10X150FTBZPM12X150FTA4M12X150FTBZP
160MM SET SCREWM10X160FTA4M10X160FTBZPM12X160FTA4M12X160FTBZP
170MM SET SCREWM10X170FTA4M10X170FTBZPM12X170FTA4M12X170FTBZP
180MM SET SCREWM10X180FTA4M10X180FTBZPM12X180FTA4M12X180FTBZP
190MM SET SCREWM10X190FTA4M10X190FTBZPM12X190FTA4M12X190FTBZP
200MM SET SCREWM10X200FTA4M10X200FTBZPM12X200FTA4M12X200FTBZP
STUDDING 1M LENGTHM10STUDA41MM10STUDBZP1MM12STUDA41MM12STUDBZP1M
Studding is available to order in 1m lengths
NYLOC NUTM10NYNA4M10NYNBZPM12NYNA4M12NYNBZP
FORM A WASHERM10FAWA4M10FAWBZPM12FAWA4M12FAWBZP

Note: If your requirements are not listed above then please contact CMP. Bespoke fixings are available on request.
