LSF & PVC Cable Shrouds

We'd like to keep in touch

We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

No thanks, I'd just like to Download the datasheet.

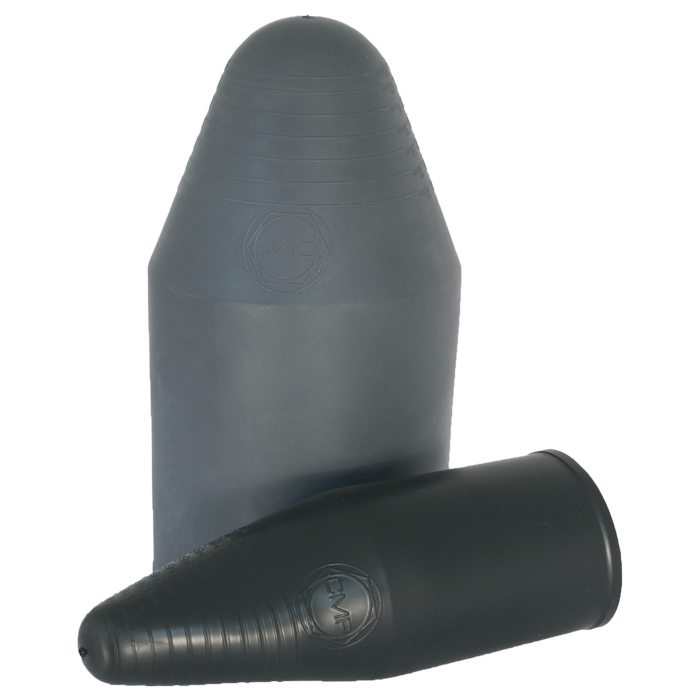

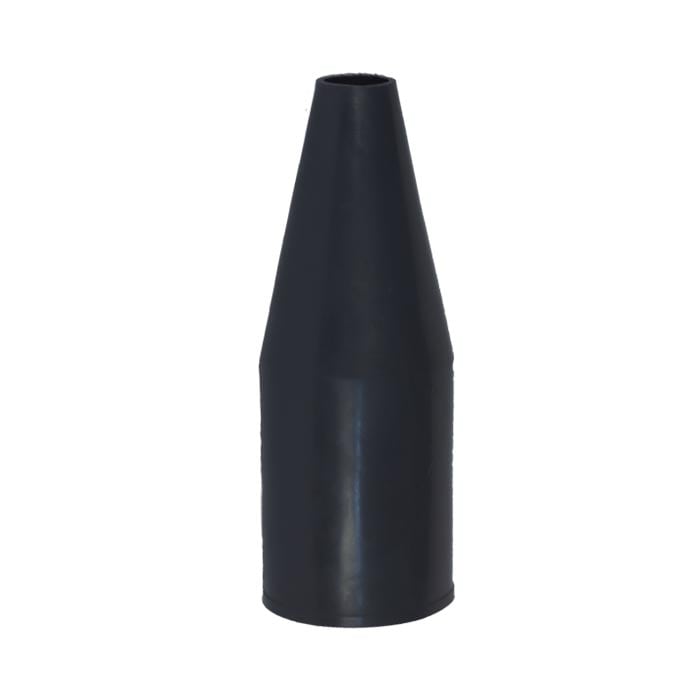

CMP Products’ cable shrouds minimise the risk of dirt or foreign substances gathering on the cable gland and point of cable to cable interface.

LSF cable shrouds are Low Smoke & Fume (LSF), and Phosphorus Free to suit all CMP SOLO Cable Glands. Manufactured from low smoke, self-extinguishing, non-drip and halogen free material, these shrouds are rated UL94 V0 and are essential for areas where fire safety is key. CMP LSF shrouds and CMP SOLO Cable Glands meet the requirements of the London Underground Fire Safety Regulations and as such, they are LUL approved for use within the London Underground network.

CMP cable shrouds are available in a variety of colours, not all colours are available in all materials, please enquire for further information.

Temperature ratings for CMP shrouds are as follows:

  • PVC -60°C to +90°C
  • LSF -60°C to +130°C
  • PCP -60°C to +100°C

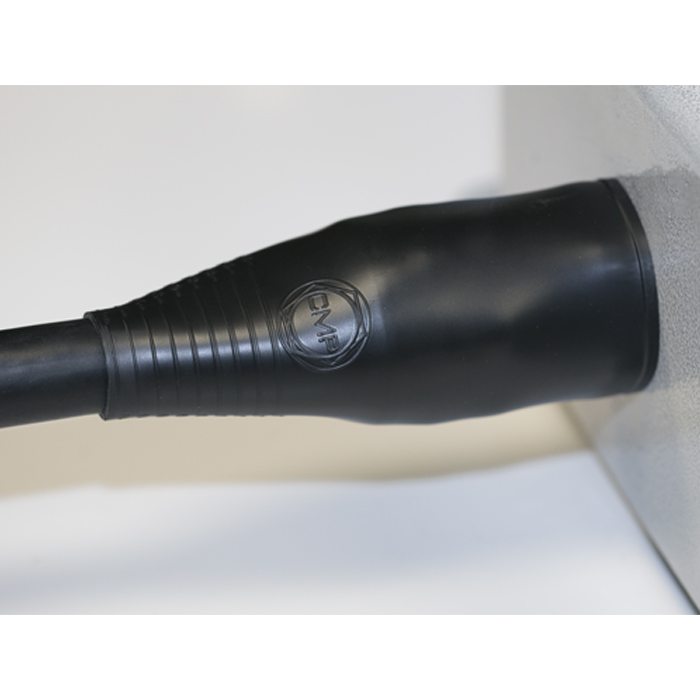

Please click here to view installation instructions. Alternatively, a link to the installation video can be found below.

Note: PCP cable shrouds are available, only in open-ended style and only in the colour black. Please contact the CMP Technical Team for more information.

No Data Entered

Watch Installation Video

Cable Shroud Tables

STANDARD GLANDSA2 A2e / A2F / A2HT / A2F100 / A2E100RA2EA2RC / A2FRCZENBWBWLC2K / C2KGPCW / CWe / CX / CXeCXTE-TYPEPX2KPXRCPXSS2KPXSS2K-HCS-TYPET3CDS / T3CDS-PBTE1FU / TE1FU-PB
SizeMetricNPT
16M161/2"PVC02PVC04-PVC04---PVC04--PVC04----PVC04PVC36PVC04
20s/16M201/2"PVC04PVC04PVC05PVC04--PVC04PVC04PVC04PVC04PVC04PVC06-PVC06PVC06PVC04PVC36PVC04
20sM201/2"PVC04PVC04PVC05PVC04PVC04PVC02PVC04PVC04PVC04PVC04PVC04PVC06-PVC06PVC06PVC04PVC36PVC04
20M201/2"PVC05PVC05PVC05PVC05PVC06PVC05PVC06PVC06PVC06PVC05PVC06PVC06PVC06PVC06PVC06PVC05PVC06PVC06
25sM253/4"----PVC09--PVC09PVC09-PVC09PVC09----PVC09PVC09
25M253/4"PVC09PVC09PVC09PVC09PVC09PVC07PVC09PVC09PVC09PVC09PVC09PVC09PVC09PVC09PVC09PVC09PVC09PVC09
32M321"PVC10PVC10PVC10PVC10PVC11PVC10PVC11PVC11PVC11PVC10PVC11PVC11PVC10PVC10PVC10PVC10PVC11PVC11
40M401-1/4"PVC13PVC13PVC13PVC13PVC15PVC13PVC15PVC15PVC15PVC13PVC15PVC15PVC13PVC13PVC13PVC13PVC15PVC15
50sM501-1/2"PVC15PVC15PVC18PVC15PVC18PVC16PVC18PVC18PVC18PVC15PVC18PVC18PVC15PVC15PVC18PVC15PVC18PVC18
50M502"PVC18PVC18PVC18PVC18PVC21PVC19PVC21PVC21PVC21PVC18PVC21PVC21PVC18PVC18PVC18PVC18PVC21PVC21
63sM632"PVC21PVC21PVC23PVC21PVC23PVC23PVC23PVC23PVC23PVC21PVC23PVC23PVC21PVC21PVC21PVC21PVC23PVC23
63M632-1/2"PVC23PVC23PVC23PVC23PVC25PVC24PVC25PVC25PVC25PVC23PVC25PVC25PVC23PVC23PVC23PVC23PVC25PVC25
75sM752-1/2"PVC26PVC26PVC26PVC26PVC28PVC27PVC28PVC28PVC28PVC26PVC28PVC28PVC26PVC25PVC25PVC26PVC28PVC28
75M753"PVC24PVC24PVC27PVC26PVC30PVC29PVC30PVC30PVC30PVC26PVC30PVC30PVC26PVC27PVC27PVC26PVC30PVC30
90M903"PVC31PVC31PVC31PVC31PVC32-PVC32PVC32PVC32PVC31PVC32PVC32PVC31PVC31-PVC31PVC32PVC32
100M1004"-----------------
115M1154-1/2"-----------------
130M1305"-----------------
A2FFC Gland SizeSuffixShrouds for CMP Type A2FFCTC Gland SizeShrouds for CMP Type TCTMC2 Gland SizeShrouds for CMP Type TMC2 / TMC2BCTMC2X Gland SizeShrouds for CMP Type TMC2XTMC Gland SizeShrouds for CMP Type TMC / TMCX
PVC RefPVC RefPVC RefPVC RefPVC Ref
20s16C000PVC04TC-050##028PVC05TMC2-050##075PVC06TMC2X-050##075PVC06TMC050S##PVC06
20s16C001PVC04TC-075##028PVC05TMC2-075##075PVC06TMC2X-050##099PVC09TMC050##PVC09
20s16C004PVC04TC-050##055PVC06TMC2-050##099PVC09TMC2X-075##075PVC06TMC075##PVC10
20s16C009PVC04TC-075##055PVC09TMC2-075##099PVC09TMC2X-075##099PVC09TMC100##PVC13
20s16C010PVC04TC-075##079PVC09TMC2-075##118PVC11TMC2X-075##118PVC11TMC125##PVC15
20s16C020PVC04TC-100##079PVC09TMC2-100##118PVC11TMC2X-100##118PVC11TMC150##PVC18
20s16C025PVC04TC-100##104PVC11TMC2-100##137PVC15TMC2X-100##137PVC15TMC200S##PVC21
20s16C030PVC04TC-125##104PVC11TMC2-125##137PVC15TMC2X-125##137PVC15TMC200##PVC23
20SC025PVC04TC-125##127PVC13TMC2-125##162PVC18TMC2X-125##162PVC18TMC250S##PVC25
20SC040PVC04TC-150##127PVC13TMC2-150##162PVC18TMC2X-125##190PVC37TMC250##PVC27
20SC045PVC04TC-150##150PVC21TMC2-125##190PVC37TMC2X-150##162PVC18TMC300##PVC32
20SC060PVC04TC-200##150PVC21TMC2-150##190PVC37TMC2X-150##190PVC37TMC350##-
20C050PVC05TC-200##174PVC21TMC2-150##200PVC21TMC2X-150##200PVC21TMC400##-
20C066PVC05TC-250##174PVC21TMC2-200##200PVC21TMC2X-200##200PVC21
20C070PVC05TC-200##197PVC28TMC2-150##233PVC23TMC2X-200##233PVC23
20C075PVC05TC-250##197PVC28TMC2-200##233PVC23TMC2X-250##233PVC28
20C080PVC05TC-250##220PVC28TMC2-200##272PVC28TMC2X-250##272PVC28
20C085PVC05TC-300##220PVC28TMC2-250##272PVC28TMC2X-300##272PVC31
25C100PVC09TC-250##244PVC31TMC2-300##325PVC32TMC2X-300##325PVC32
25C105PVC09TC-300##244PVC31TMC2-350##325PVC32TMC2X-350##325PVC32
25C110PVC09TC-300##268PVC31TMC2-350##376-TMC2X-350##376-
25C115PVC09TC-350##268PVC31TMC2-400##376-TMC2X-400##376-
25C120PVC09TC-350##315-TMC2-400##425-TMC2X-400##425-
25C180PVC09TC-400##315-
32C250PVC10TC-400##354-
32C280PVC10
32C290PVC11
40C300PVC13
40C380PVC13
50SC450PVC18
50SC500PVC18
50C550PVC18
STANDARD GLANDSA2A2e / A2F / A2HT / A2F100 / A2E100RA2EA2RC / A2FRCZENBWBWLC2K / C2KGPCW / CWe / CX / CXeCXTE-TYPEPX2KPXRCPXSS2KPXSS2K-HCS TYPET3CDS / T3CDS-PBTE1FU / TE1FU-PB
SizeMetricNPT
16M161/2"LSF02LSF02-LSF04---LSF04LSF04-LSF04----LSF04LSF36LSF04
20s/16M201/2"LSF04LSF04LSF05LSF04--LSF04LSF04LSF04LSF04LSF04LSF06-LSF06LSF06LSF04LSF36LSF04
20sM201/2"LSF04LSF04LSF05LSF04LSF04LSF02LSF04LSF04LSF04LSF04LSF04LSF06-LSF06LSF06LSF04LSF36LSF04
20M201/2"LSF05LSF05LSF05LSF05LSF06LSF05LSF06LSF06LSF06LSF05LSF06LSF06LSF06LSF06LSF06LSF05LSF06LSF06
25sM253/4"----LSF09--LSF09LSF09-LSF09LSF09----LSF09LSF09
25M253/4"LSF09LSF09LSF09LSF09LSF09LSF07LSF09LSF09LSF09LSF09LSF09LSF09LSF09LSF09LSF09LSF09LSF09LSF09
32M321"LSF10LSF10LSF10LSF10LSF11LSF10LSF11LSF11LSF11LSF10LSF11LSF11LSF10LSF10LSF10LSF10LSF11LSF11
40M401-1/4"LSF13LSF13LSF13LSF13LSF15LSF13LSF15LSF15LSF15LSF13LSF15LSF15LSF13LSF13LSF13LSF13LSF15LSF15
50sM501-1/2"LSF15LSF15LSF18LSF15LSF18LSF16LSF18LSF18LSF18LSF15LSF18LSF18LSF15LSF15LSF18LSF15LSF18LSF18
50M502"LSF18LSF18LSF18LSF18LSF21LSF19LSF21LSF21LSF21LSF18LSF21LSF21LSF18LSF18LSF18LSF18LSF21LSF21
63sM632"LSF21LSF21LSF23LSF21LSF23LSF23LSF23LSF23LSF23LSF21LSF23LSF23LSF21LSF21LSF21LSF21LSF23LSF23
63M632-1/2"LSF23LSF23LSF23LSF23LSF25LSF24LSF25LSF25LSF25LSF23LSF25LSF25LSF23LSF23LSF23LSF23LSF25LSF25
75sM752-1/2"LSF26LSF26LSF26LSF26LSF28LSF27LSF28LSF28LSF28LSF26LSF28LSF28LSF26LSF25LSF25LSF26LSF28LSF28
75M753"LSF24LSF24LSF27LSF26LSF30LSF29LSF30LSF30LSF30LSF26LSF30LSF30LSF26LSF27LSF27LSF26LSF30LSF30
90M903"LSF31LSF31LSF31LSF31LSF32-LSF32LSF32LSF32LSF31LSF32LSF32LSF31LSF31-LSF31LSF32LSF32
100M1004"LSF33LSF33LSF33----LSF33LSF33LSF33LSF33LSF33-LSF33-LSF33LSF33LSF33
115M1154-1/2"LSF34LSF34LSF34----LSF34LSF34LSF34LSF34----LSF34LSF34LSF34
130M1305"LSF35LSF35LSF35----LSF35LSF35LSF35LSF35----LSF35LSF35LSF35
A2FFC Gland SizeSuffixShrouds for CMP Type A2FFCTC Gland SizeShrouds for CMP Type TCTMC2 Gland SizeShrouds for CMP Type TMC2 / TMC2BCTMC2X Gland SizeShrouds for CMP Type TMC2XTMC Gland SizeShrouds for CMP Type TMC / TMCX
LSF RefLSF RefLSF RefLSF RefLSF Ref
20s16C000LSF04TC-050##028LSF05TMC2-050##075LSF06TMC2X-050##075LSF06TMC050S##LSF06
20s16C001LSF04TC-075##028LSF05TMC2-075##075LSF06TMC2X-050##099LSF09TMC050##LSF09
20s16C004LSF04TC-050##055LSF06TMC2-050##099LSF09TMC2X-075##075LSF06TMC075##LSF10
20s16C009LSF04TC-075##055LSF09TMC2-075##099LSF09TMC2X-075##099LSF09TMC100##LSF13
20s16C010LSF04TC-075##079LSF09TMC2-075##118LSF11TMC2X-075##118LSF11TMC125##LSF15
20s16C020LSF04TC-100##079LSF09TMC2-100##118LSF11TMC2X-100##118LSF11TMC150##LSF18
20s16C025LSF04TC-100##104LSF11TMC2-100##137LSF15TMC2X-100##137LSF15TMC200S##LSF21
20s16C030LSF04TC-125##104LSF11TMC2-125##137LSF15TMC2X-125##137LSF15TMC200##LSF23
20SC025LSF04TC-125##127LSF13TMC2-125##162LSF18TMC2X-125##162LSF18TMC250S##LSF25
20SC040LSF04TC-150##127LSF13TMC2-150##162LSF18TMC2X-125##190LSF37TMC250##LSF27
20SC045LSF04TC-150##150LSF21TMC2-125##190LSF37TMC2X-150##162LSF18TMC300##LSF32
20SC060LSF04TC-200##150LSF21TMC2-150##190LSF37TMC2X-150##190LSF37TMC350##LSF34
20C050LSF05TC-200##174LSF21TMC2-150##200LSF21TMC2X-150##200LSF21TMC400##LSF34
20C066LSF05TC-250##174LSF21TMC2-200##200LSF21TMC2X-200##200LSF21
20C070LSF05TC-200##197LSF28TMC2-150##233LSF23TMC2X-200##233LSF23
20C075LSF05TC-250##197LSF28TMC2-200##233LSF23TMC2X-250##233LSF28
20C080LSF05TC-250##220LSF28TMC2-200##272LSF28TMC2X-250##272LSF28
20C085LSF05TC-300##220LSF28TMC2-250##272LSF28TMC2X-300##272LSF31
25C100LSF09TC-250##244LSF31TMC2-300##325LSF32TMC2X-300##325LSF32
25C105LSF09TC-300##244LSF31TMC2-350##325LSF32TMC2X-350##325LSF32
25C110LSF09TC-300##268LSF31TMC2-350##376LSF33TMC2X-350##376LSF33
25C115LSF09TC-350##268LSF31TMC2-400##376LSF33TMC2X-400##376LSF33
25C120LSF09TC-350##315LSF33TMC2-400##425LSF34TMC2X-400##425LSF34
25C180LSF09TC-400##315LSF33
32C250LSF10TC-400##354LSF34
32C280LSF10
32C290LSF11
40C300LSF13
40C380LSF13
50SC450LSF18
50SC500LSF18
50C550LSF18
