- 787 | 90 Degree Adaptor
- Ex ta

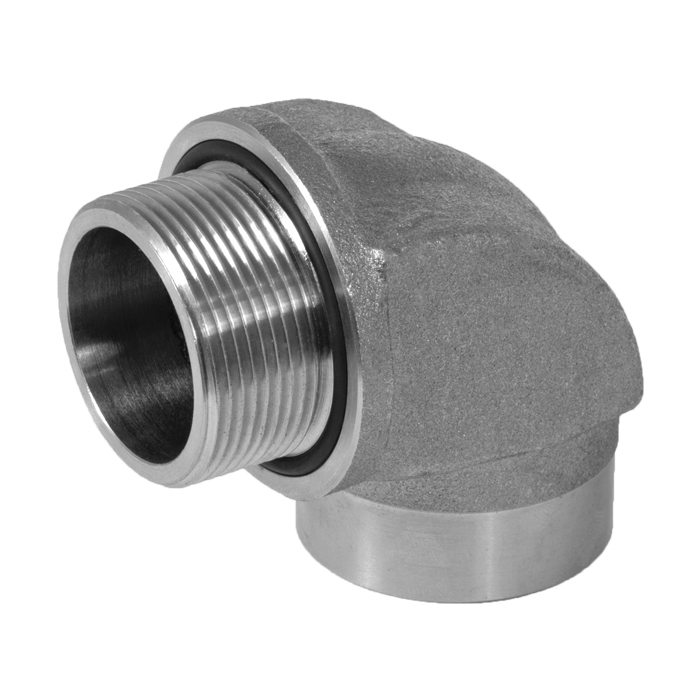

787 | 90 Degree Adaptor Available in brass, nickel plated brass, aluminium, stainless steel
We'd like to keep in touch
We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.
90° Adaptor, Globally Approved, Explosive Atmosphere Cable / Conduit Accessory
• Protects cables from excessive bending stress
• General purpose / industrial version available
• Supplied with male or female threads
• Can be supplied with thread conversion
• Equipment interface ‘O’ ring seal available
• -60°C to +200°C
• Globally marked, IECEx, ATEX & cCSAus
• Can be used with 737 (not Ex d direct entry applications)
| Design Specification | BS 6121:Part 1:1989, IEC 62444, EN 62444 |
| Enclosure Protection | IK10 to IEC 62262 (20 joules) Brass & Stainless Steel Only |
| ATEX Certificate | CML 18ATEX1319U |
| UKEX Certificate | CML 21UKEX1243U |
| Code of Protection | II 2 G Ex db IIC Gb,Ex eb IIC Gb, II 1 D Ex ta IIIC Da IM2 Ex db I Mb, Ex eb I Mb |
| Compliance Standards | EN 60079-0,1,7,31 |
| IECEx Certificate | IECEx CML 18.0176U, IECEx SIM 17.0009U |
| Code of Protection | Ex db I Mb, Ex eb I Mb, Ex db IIC Gb, Ex eb IIC Gb, Ex ta IIIC Da |
| Compliance Standards | IEC 60079-0,1,7,31 |
| cCSAus Certificate | 1055233 |
| Code of Protection | Class I, Groups A, B, C and D; IP66, 67, 68; Enclosure Type 4X; Ex de II, Class I, Zone 1, AEx de II; |
| Compliance Standards | C22.2 No. 0, 0.5-M1982, 30, 94, CAN/CSA E60079-0,1,7, UL 50, Edition 11, UL 1203, Edition 4, UL 60079-0,1,7 |
| EAC Certificate (Formerly GOST R, K & B) | C-GB.A07.B.04600/22 |
| GOST R Certificate | POCC.GB.HA46.H00140 |
| CCC Certificate | 2020322313003177 |
| INMETRO Approval | TÜV 12.1335U |
| RETIE Approval | 03866 |
| CCOE / PESO (India) Certificate | Ex d: P548696, Ex e: P533772 |
| UkrSEPRO | CU 19.0371X |
| SANS | MS-XPL21804 21.0005U |
| Marine Approvals | LRS: 01/00173, ABS: 17-LD1619350-PDA, BV: 43180/A1 BV |
| Ingress Protection Rating ** | IP66, IP67 & IP68 (when fitted with CMP sealing accessories) |
| Available Materials | Brass, Electroless Nickel Plated Brass, Aluminium, Stainless Steel |
| ECAS Certificate | 24-03-106290/E24-03-110155/NB0007 |
** When CMP installation accessories are used. Refer to Maintaining a Seal for further information.
*** IP68 tested to a minimum depth of 30 metres for 12 hours, alternate depths / durations can be provided upon request
Certificates
Product Selection Table
Click here to view how to order

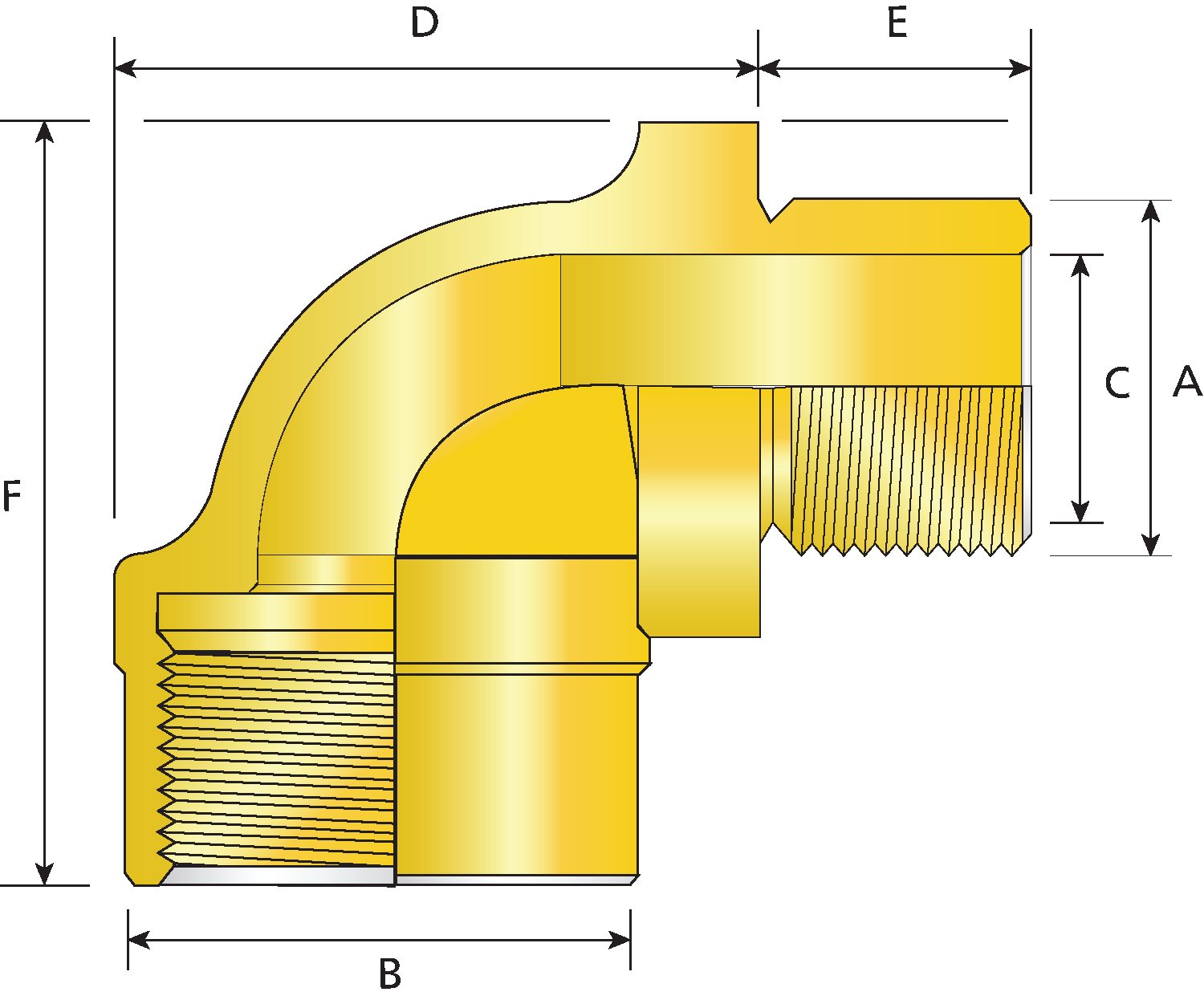

| Ordering Reference | Male Thread Size 'A' | Minimum Thread Length 'E' | Bore Diameter 'C' | Female Thread Size | Protrusion Length 'D' | Protrusion Length 'F' | Width 'B' | Width 'B' |
| 787DM2M2 | M20 X 1.5 | 0.60 | 0.55 | M20 X 1.5 | 1.17 | 1.61 | 0.94 | 7 |
| 787DM3M3 | M25 X 1.5 | 0.60 | 0.73 | M25 X 1.5 | 1.43 | 1.94 | 1.14 | 10 |
| 787DM4M4 | M32 X 1.5 | 0.60 | 1.01 | M32 X 1.5 | 1.78 | 2.22 | 1.42 | 15 |
| 787DM5M5 | M40 X 1.5 | 0.60 | 1.32 | M40 X 1.5 | 2.13 | 2.55 | 1.73 | 25 |
| 787DM6M6 | M50 X 1.5 | 0.60 | 1.61 | M50 X 1.5 | 2.69 | 2.91 | 2.13 | 30 |
| 787DM7M7 | M63 X 1.5 | 0.60 | 1.97 | M63 X 1.5 | 3.82 | 4.11 | 2.96 | 45 |
| 787DM8M8 | M75 X 1.5 | 0.60 | 2.41 | M75 X 1.5 | 3.82 | 4.38 | 3.13 | 45 |
| 787DM9M9 | M90 X 2.0 | 0.60 | 3.15 | M90 X 2.0 | 3.94 | 5.17 | 4.33 | 45 |
| 787DM10M10 | M100 X 2.0 | 0.60 | 3.58 | M100 X 2.0 | 4.33 | 5.56 | 4.53 | 45 |
| Dimensions displayed in inches unless otherwise stated | ||||||||
| Ordering Reference | Male Thread Size 'A' | Minimum Thread Length 'E' | Bore Diameter 'C' | Female Thread Size | Protrusion Length 'D' | Protrusion Length 'F' | Width 'B' | Width 'B' |
| 787DM2M2 | M20 X 1.5 | 15.3 | 14.0 | M20 X 1.5 | 29.6 | 41.0 | 24.0 | 7 |
| 787DM3M3 | M25 X 1.5 | 15.3 | 18.6 | M25 X 1.5 | 36.3 | 49.3 | 29.0 | 10 |
| 787DM4M4 | M32 X 1.5 | 15.3 | 25.6 | M32 X 1.5 | 45.2 | 56.3 | 36.0 | 15 |
| 787DM5M5 | M40 X 1.5 | 15.3 | 33.6 | M40 X 1.5 | 54.2 | 64.8 | 44.0 | 25 |
| 787DM6M6 | M50 X 1.5 | 15.3 | 41.0 | M50 X 1.5 | 68.3 | 74.0 | 54.0 | 30 |
| 787DM7M7 | M63 X 1.5 | 15.3 | 50.0 | M63 X 1.5 | 97.0 | 104.3 | 75.3 | 45 |
| 787DM8M8 | M75 X 1.5 | 15.3 | 61.3 | M75 X 1.5 | 97.0 | 111.3 | 79.5 | 45 |
| 787DM9M9 | M90 X 2.0 | 15.3 | 80.0 | M90 X 2.0 | 100.0 | 131.3 | 110.0 | 45 |
| 787DM10M10 | M100 X 2.0 | 15.3 | 91.0 | M100 X 2.0 | 110.0 | 141.3 | 115.0 | 45 |
| Dimensions displayed in millimeters unless otherwise stated | ||||||||
The Use of Multiple Adaptors in a Single Entry for Ex Equipment
The IEC 60079-1 standard allows the use of threaded adaptors and reducers for direct entry into Flameproof type ‘d’ enclosures. In future, the female connection threads of the adaptors and/or reducers will be limited to metric or NPT only. When using thread adaptors and reducers or reducer bushings, only one is permitted for any single cable entry of Flameproof type ‘d’ (Ex d) equipment.
Read moreCable Entries Made Directly into Flameproof Type ‘d’ (Ex d)
The following page contains an illustrative example of Cable Entries Made Directly into Flameproof Type 'd' (Ex d).
