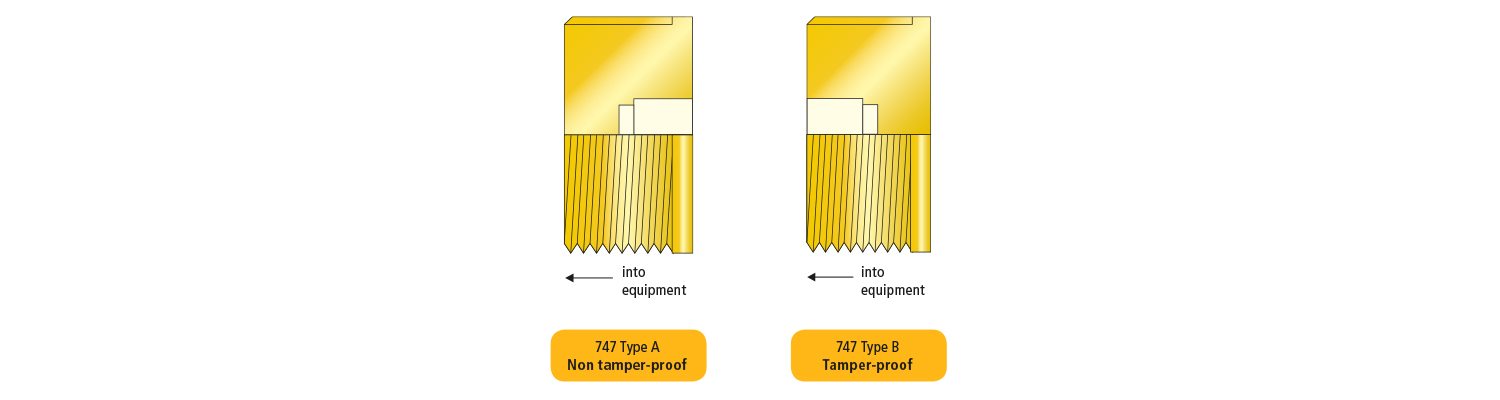

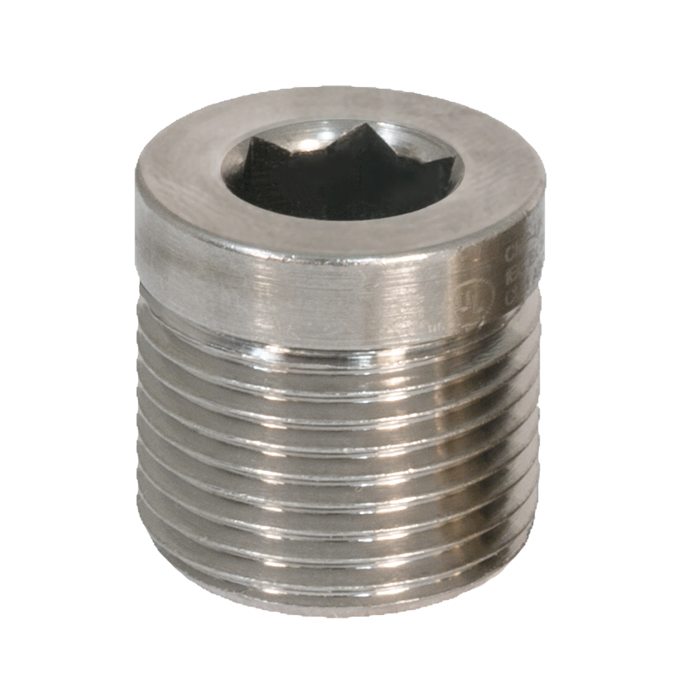

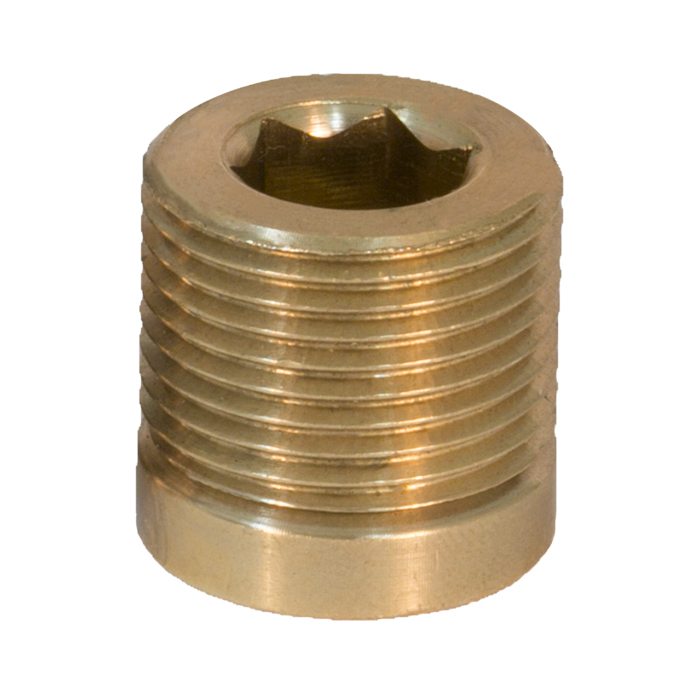

747 | Recessed Stopper Plug Available in brass, nickel plated brass, aluminium, stainless steel & nylon
We'd like to keep in touch
We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.
Recessed Stopper Plug, Globally Approved, Explosive Atmosphere Cable / Conduit Accessory
• Provides means of blanking unused cable entries
• Temporary or permanent
• Tamper-proof (Type B) version available
• General purpose / industrial version available
• Nylon Ex e only version available (-20°C to +60°C)
• -60°C to +200°C (metallic versions)
• Globally marked, IECEx, ATEX, cCSAus & UL
• For use with threaded entry holes only – for stopper plugs suitable for use in clearance/through holes, please see 757 or 767
• Nylon stopper 717 / 717e to be used for sizes M20, M25, M32, 1⁄2″, 3⁄4″ and 1″
Please note: 747 Stopper Plugs have passed IP66 compliance tests to IEC 60529 with no additional sealing. However CMP would recommend the addition of thread sealant or grease (such as Dow Corning No. 4 Silicone) in order to help maintain IP66 and keep water out of the enclosure in the long-term. The addition of thread sealant or grease is permitted as long as it is non-setting, non-metallic and non-combustible in compliance with IEC 60079-14.
| Description | Allen Key Recess | Metallic | Non-Metallic | |||
| Ex 'd' | Ex 'e' | Industrial | Ex 'e' | Industrial | ||
| 747 Recessed Non-Tamper Proof Type 'A' | Y | Y | Y | Y | Y | Y |
| 747 Recessed Tamper Proof Type 'B' | Y | Y | Y | Y | Y | Y |
| 757 Hexagon Head | N | Y | Y | Y | Y | Y |
| 757 Hexagon Head c/w 'O' ring seal | N | Y | Y | Y | Y | Y |
| 767 Dome Head | Y | Y | Y | Y | Y | Y |
| 767 Dome Head c/w 'O' ring seal | Y | Y | Y | Y | Y | Y |
| 717 Universal | Y | N | N | N | Y | Y |
HOW TO ORDER
e.g. 747 – D – A – M – 3 – 1
= Dual Certified Ex d & Ex e- Type A – M25 – Aluminium
For Tamper-Proof Type B Stopper Plugs please substitute the letter A with the letter B in the ordering reference list below.
Other thread variations are available on request.
For further information on ordering please contact a member of the CMP team.
| Design Specification | BS 6121:Part 1:1989, IEC 62444, EN 62444 |
| Enclosure Protection | IK10 to IEC 62262 (20 joules) Brass & Stainless Steel Only |
| ATEX Certificate | CML 18ATEX1320X |
| UKEX Certificate | CML 21UKEX1238X |
| Code of Protection | II 2G 1D Ex db IIC Gb, Ex eb IIC Gb, Ex ta IIIC Da I M2 Ex db I Mb, Ex eb I Mb (II 2G 1D Ex eb IIC Gb, Ex ta IIIC Da only on Nylon version) |
| Compliance Standards | EN 60079-0,1,7, 31 |
| IECEx Certificate | IECEx CML 18.0177X, IECEx SIM 15.0002X |
| Code of Protection | Ex db I Mb, Ex eb I Mb; Ex db IIC Gb, Ex eb IIC Gb, Ex ta IIIC Da (Ex eb IIC Gb, Ex ta IIIC Da only on Nylon version) |
| Compliance Standards | IEC 60079-0,1, 7, 31 |
| cCSAus Certificate | 1055233 (Metallic versions only) |
| Code of Protection | Class I, Groups A, B, C and D; IP66, 67, 68, Enclosure Type 4X; Class II Groups E, F and G; Class III Ex de II, Class I, Zone 1, AEx de II |
| Compliance Standards | C22.2 No. 0, 0.5, 30,94,CAN/CSA 60079-0, 1, 7, UL50 Edition 11, UL1203 Edition 4, UL 60079-0, 1, 7 |
| UL Certificate | E214221 (Metallic versions only) |
| Code of Protection | Class I, Groups A,B,C, and D; Class II Groups E,F, and G; Class III |
| Compliance Standards | UL 1203 |
| EAC Certificate (Formerly GOST R, K & B) | TC RU C-GB.AA87.B.00487 |
| KCs Certificate | 14-GA4BO-0247X |
| CCOE / PESO (India) Certificate | Ex d: P548696, Ex e: P533772 |
| CCC Certificate | 2020322313001727 |
| INMETRO Certificate | TÜV 12.1333X |
| RETIE Approval | 03866 |
| UkrSEPRO | CU 19.0372X |
| SANS | MS-XPL21804 21.0006X |
| Marine Approvals | LRS: 01/00173, DNV: TAE00000Y, ABS: 17-LD1619350-PDA, BV: 43180/A1BV |
| Continuous Operating Temperature | -60°C to +200°C (Metallic), -20°C to +60°C (Nylon) |
| Ingress Protection Rating ** | IP66 |
| Available Materials | Brass, Electroless Nickel Plated Brass, Aluminium, Stainless Steel, Nylon |
| ECAS Certificate | 24-03-106290/E24-03-110155/NB0007 |
** When CMP installation accessories are used. Refer to Maintaining a Seal for further information.
Certificates
Product Selection Table
Click here to view how to order
| Ordering Reference | Thread Size | Minimum Thread Length | Allen Key Size A/F |
| 747DAM1 | M16 X 1.5 | 0.59 | M8 |
| 747DAM2 | M20 X 1.5 | 0.59 | M10 |
| 747DAM3 | M25 X 1.5 | 0.59 | M10 |
| 747DAM4 | M32 X 1.5 | 0.59 | M10 |
| 747DAM5 | M40 X 1.5 | 0.59 | M10 |
| 747DAM6 | M50 X 1.5 | 0.59 | M10 |
| 747DAM7 | M63 X 1.5 | 0.59 | M14 |
| 747DAM8 | M75 X 1.5 | 0.59 | M14 |
| 747DAM9 | M90 X 2.0 | 0.94 | M14 |
| 747DAM10 | M100 x 2.0 | 0.94 | M14 |
| Dimensions displayed in millimeters unless otherwise stated | |||
| Ordering Reference | Thread Size | Minimum Thread Length | Allen Key Size A/F |
| 747DAM1 | M16 X 1.5 | 15.0 | M8 |
| 747DAM2 | M20 X 1.5 | 15.0 | M10 |
| 747DAM3 | M25 X 1.5 | 15.0 | M10 |
| 747DAM4 | M32 X 1.5 | 15.0 | M10 |
| 747DAM5 | M40 X 1.5 | 15.0 | M10 |
| 747DAM6 | M50 X 1.5 | 15.0 | M10 |
| 747DAM7 | M63 X 1.5 | 15.0 | M14 |
| 747DAM8 | M75 X 1.5 | 15.0 | M14 |
| 747DAM9 | M90 X 2.0 | 24.0 | M14 |
| 747DAM10 | M100 x 2.0 | 24.0 | M14 |
| Dimensions displayed in millimeters unless otherwise stated | |||
| If a nylon stopper is required for sizes M20, M25, M32, 1⁄2", 3⁄4" and 1" please order717 or 717e. | |||
