CW SOLO | Industrial Cable Gland For all types of Steel & Aluminium Wire Armoured Cables

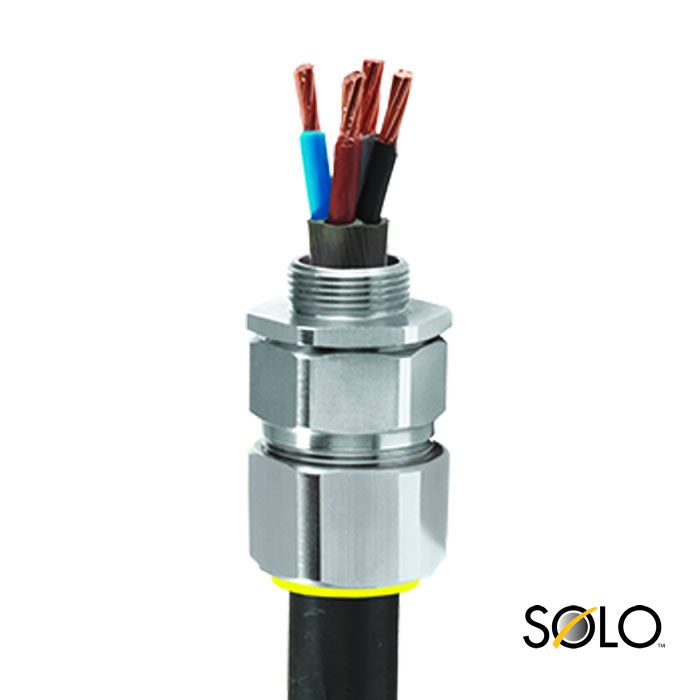

Industrial Single Seal Cable Gland SOLO LSF Kit
• Metal-to-metal armour clamping
• Direct & remote installation
• Controlled outer ‘load retention’ seal
• Unique OSTG prevents overtightening
• -60°C to +130°C
• Deluge protection option
• EMC tested
• LUL (London Underground) approved

For under / oversized armour wires click here

Type CW SOLO-Kit
Design Specification BS 6121:Part 1:1989, IEC 62444, EN 62444
Mechanical Classifications* Impact = Level 8, Retention = Class D
Enclosure Protection IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
Electrical Classifications * Category B
Marine Approvals LRS: 01/00171 (E1), ABS: 16-LD1472056-PDA
Ingress Protection Rating ** IP66
Cable Gland Material Brass, Electroless Nickel Plated Brass, Stainless Steel, Aluminium
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer
Cable Type Single Wire Armour (SWA), Aluminium Wire Armour (AWA)
Armour Clamping Detachable Armour Cone & AnyWay Universal Clamping Ring
Sealing Technique Unique CMP ‘LRS’ Outer Seal (Load Retention Seal)
Sealing Area(s) Cable Outer Sheath
Cable Gland Kits Available Up to & including size 25 - 2 glands, 2 locknuts, 2 earth tags & 2 LSF shrouds
Size 32 & above - 1 gland, 1 locknut, 1 earth tag & 1 LSF shroud
Optional Accessories Locknuts, Earth Tags, Serrated Washers, Entry Thread Seals, Shrouds,Ingress Discs
Optional Installation Tools Spanners, Armour Former Tool

Note : * Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444
** Refer to Maintaining a Seal for further information on Ingress Protection Ratings

Jump to technical illustration

Certificates

Click here to view Certificates

Product Selection Table

Click here to view how to order

Cable Gland SizeEntry Thread 'C'Thread Length
(Metric) 'E'
Cable
Bedding
Diameter
'A'
Overall
Cable
Diameter
'B'
Armour RangeAcross
Flats 'D'
Across
Corners
'D'
Protrusion
Length 'F'
(Without Shroud)
Combined Ordering Reference
(*Brass Metric)
Cable
Gland Only
Weight
(Ozs)
MaxMaxMaxMinMaxMaxMaxSizeTypeOrdering
Suffix
20S16M200.390.340.240.520.030.050.941.041.8920S16CW1RA3.53
20SM200.390.460.370.630.030.050.941.041.8920SCW1RA4.94
20M200.390.550.490.820.030.051.201.321.8920CW1RA6.35
25SM250.390.790.550.870.050.061.481.632.2025SCW1RA9.07
25M250.390.790.721.030.050.061.481.632.2025CW1RA9.07
32M320.391.020.931.330.060.081.811.992.1332CW1RA13.26
40M400.591.271.101.590.060.082.172.382.2840CW1RA22.22
50SM500.591.501.391.840.080.102.362.602.4050SCW1RA26.7
50M500.591.741.592.090.080.102.763.042.3650CW1RA30.41
63SM630.591.971.802.340.080.102.953.252.9163SCW1RA49.03
63M630.592.202.152.590.080.103.153.462.863CW1RA47.97
75SM750.592.442.322.830.080.103.543.903.3975SCW1RA81.38
75M750.592.532.633.090.100.123.944.333.2375CW1RA102.61
90M900.943.093.003.560.120.164.504.953.7490CW1RA136.09
100M1000.943.583.393.990.120.164.845.333.74100CW1RA174.89
115M1150.943.864.004.340.120.165.255.784.23115CW1RA178.42
130M1300.944.534.344.850.120.166.006.604.33130CW1RA217.22
Dimensions displayed in inches unless otherwise stated
Cable Gland SizeEntry Thread 'C'Thread Length (Metric) 'E'Cable
Bedding
Diameter
'A'
Overall
Cable
Diameter
'B'
Armour RangeAcross
Flats 'D'
Across
Corners
'D'
Protrusion
Length 'F'
(Without Shroud)
Combined Ordering Reference
(*Brass Metric)
ShroudCable
Gland Only
Weight
(Kgs)
MaxMaxMaxMinMaxMaxMaxSizeTypeOrdering
Suffix
20S16M2010.08.76.113.10.81.2524.026.448.020S16CWLSF2RAPVC040.100
20SM2010.011.79.515.90.81.2524.026.448.020SCWLSF2RAPVC040.140
20M2010.014.012.520.90.81.2530.533.648.020CWLSF2RAPVC060.180
25SM2510.020.014.022.01.251.637.541.356.025SCWLSF2RAPVC090.257
25M2510.020.018.226.21.251.637.541.356.025CWLSF2RAPVC090.257
32M3210.026.023.733.91.62.046.050.654.032CWLSF2RAPVC110.376
40M4015.032.227.940.41.62.055.060.558.040CWLSF2RAPVC150.630
50SM5015.038.235.246.72.02.560.066.061.050SCWLSF2RAPVC180.757
50M5015.044.140.453.02.02.570.177.160.050CWLSF2RAPVC210.862
63SM6315.050.045.659.42.02.575.082.574.063SCWLSF2RAPVC231.390
63M6315.056.054.665.82.02.580.088.071.063CWLSF2RAPVC251.360
75SM7515.062.059.072.02.02.590.099.086.075SCWLSF2RAPVC282.307
75M7515.064.266.778.42.53.0100.011082.075CWLSF2RAPVC302.909
90M9024.078.676.290.33.154.0114.3125.795.090CWLSF2RAPVC323.858
100M10024.091.086.1101.43.154.0123.0135.395.0100CWLSF2RALSF334.958
115M11524.098.0101.5110.23.154.0133.4146.7107.5115CWLSF2RALSF345.058
130M13024.0115.0110.2123.23.154.0152.4167.6110.0130CWLSF2RALSF356.158
Dimensions displayed in millimeters unless otherwise stated

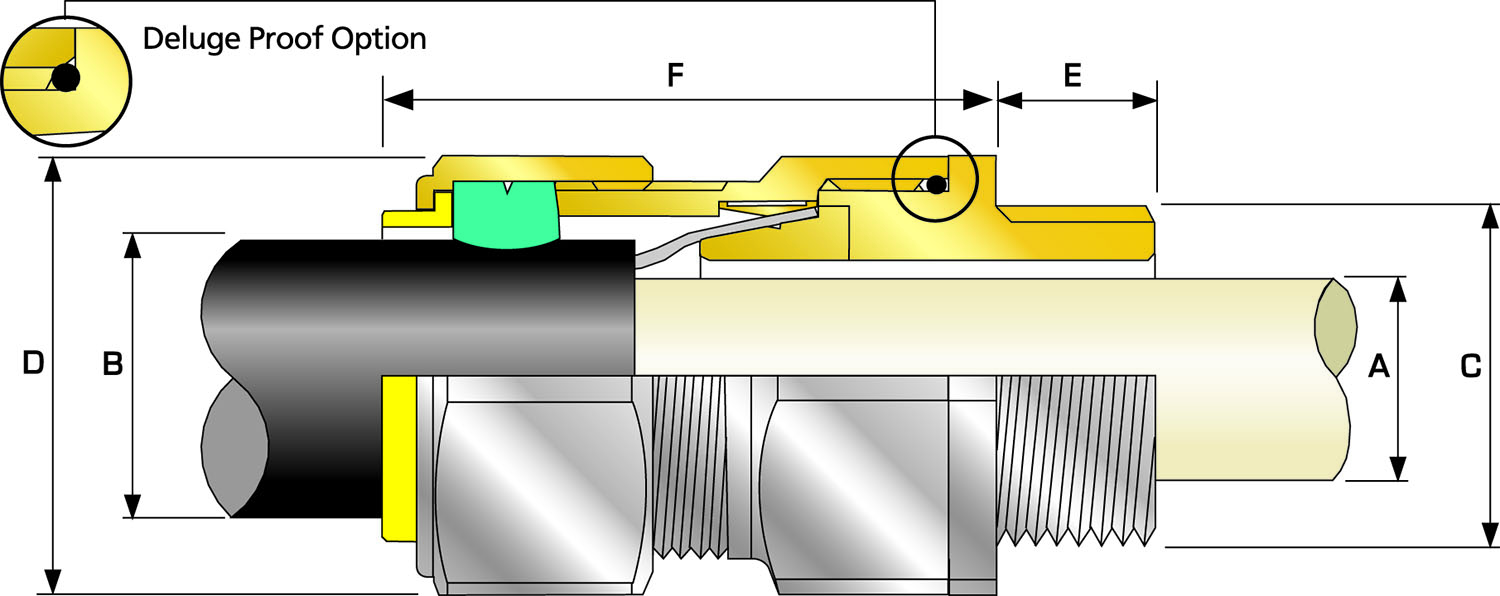

Technical Illustration
