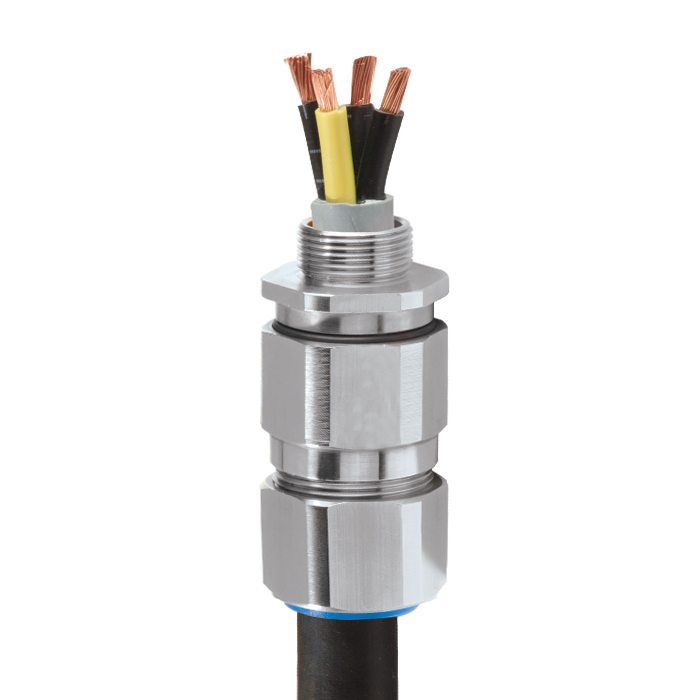

C2KGP | Industrial Cable Gland For all types of Armoured Cables

Single Seal Industrial Cable Gland

• High quality durable materials
• Robust, heavy duty design
• Metal-to-metal armour clamping
• Direct & remote installation
• Controlled outer ‘load retention’ seal
• Unique OSTG prevents overtightening
• Integral protected deluge seal
• -60°C to +130°C
• Superior EMC performance

Note: † Grooved Cone (X) is predominantly used for Wire Braid (e.g. GSWB, TCWB), Steel Tape Armour (STA, DSTA) and Aluminium Strip Armour (ASA) but is also suitable for Single Wire Armour (SWA), Aluminium Wire Armour (AWA) and Pliable Wire Armour (PWA) if the range is outside that of the Stepped Cone (W).

Note: Grooved Cone (X) dimensions shown in the Cable Gland Selection Table below are for a double wire strand of braid armour cables. Tapes can also be doubled over. For cables that have only a single layer of armour such as SWA the clamping range should be used as shown in the table below.

Stepped (W) Cone is suitable for Single Wire Armour (SWA), or Aluminium Wire Armour (AWA) cables.

For under / oversized armour wires click here

Design Specification BS 6121:Part 1:1989, IEC 62444, EN 62444
Mechanical Classifications * Impact = Level 8, Retention = Class D
Enclosure Protection IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
Electrical Classifications * Category B (Category A when used with braid, tape or pliable wire armour cables)
GOST R Certificate POCC.GB.HA46.H00140
Marine Approvals LRS: 01/00171
Ingress Protection Rating ** IP66, IP67 & IP68
Deluge Protection Compliance DTS01 : 91
Cable Gland Material Brass, Electroless Nickel Plated Brass, Stainless Steel, Aluminium
Seal Material CMP Thermoset Rubber
Cable Type Single Wire Armour (SWA), Aluminium Wire Armour (AWA), Steel Tape Armour (STA), Aluminium Strip Armour (ASA), Wire Braid Armour, Screened Flexible (EMC) Wire Braid (e.g. CY / SY), Pliable Wire Armour (PWA)
Armour Clamping Reversible Armour Cone & AnyWay Universal Clamping Ring
Sealing Technique Unique CMP ‘LRS’ Outer Seal (Load Retention Seal)
Sealing Area(s) Cable Outer Sheath
Optional Accessories Locknuts, Earth Tags, Serrated Washers, Entry Thread Seals, Shrouds,Ingress Discs
Optional Installation Tools Spanners, Armour Former Tool

Note : * Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444
** Refer to Maintaining a Seal for further information on Ingress Protection Ratings

Jump to technical illustration

Certificates

Click here to view Certificates

Product Selection Table

Click here to view how to order

Cable Gland SizeAvailable Entry Threads 'C' (Alternate Metric Thread Lengths Available)Cable
Bedding
Diameter
'A'
Overall
Cable
Diameter
'B'
Armour RangeAcross
Flats 'D'
Across
Corners
'D'
Protrusion
Length 'F'
Combined Ordering Reference
(*Brass Metric)
ShroudCable
Gland
Weight
(Ozs)
Grooved Cone (X)Stepped Cone (W)
MetricThread Length
(Metric) 'E'
MaxMaxMaxMinMaxMaxMaxMaxMaxSizeTypeOrdering
Suffix
20S16M200.390.340.240.520.010.040.030.051.201.322.5620S16C2KGP1RAPVC068.11
20SM200.390.460.370.630.010.040.030.051.201.322.4420SC2KGP1RAPVC067.76
20M200.390.550.490.820.020.040.030.051.201.322.4820C2KGP1RAPVC067.76
25SM250.390.790.550.870.020.050.050.061.481.632.7425SC2KGP1RAPVC0912.35
25M250.390.790.721.030.020.050.050.061.481.632.7425C2KGP1RAPVC0912.35
32M320.391.040.931.330.020.050.060.081.811.992.9532C2KGP1RAPVC1119.40
40M400.591.271.101.590.020.060.060.082.172.382.9540C2KGP1RAPVC1526.46
50SM500.591.501.391.840.020.060.080.102.362.603.0350SC2KGP1RAPVC1830.34
50M500.591.741.592.090.020.060.080.102.763.043.0350C2KGP1RAPVC2139.86
63SM630.591.971.802.340.020.060.080.102.953.253.1563SC2KGP1RAPVC2346.91
63M630.592.202.152.590.020.060.080.103.153.463.1563C2KGP1RAPVC2547.27
75SM750.592.442.322.830.020.060.080.103.543.903.4375SC2KGP1RAPVC2871.25
75M750.592.682.633.090.020.060.100.123.943.943.4675C2KGP1RAPVC3087.48
90M900.943.153.003.560.030.060.120.164.534.534.0290C2KGP1RAPVC32124.16
100M1000.943.583.393.990.030.060.120.165.005.004.49100C2KGP1RALSF33161.20
115M1150.943.864.004.340.030.060.120.165.255.254.49115C2KGP1RALSF34229.28
130M1300.944.534.344.850.030.060.120.166.006.004.49130C2KGP1RALSF35299.83
Dimensions displayed in inches unless otherwise stated
Cable Gland SizeAvailable Entry Threads 'C' (Alternate Metric Thread Lengths Available)Cable
Bedding
Diameter
'A'
Overall
Cable
Diameter
'B'
Armour RangeAcross
Flats 'D'
Across
Corners
'D'
Protrusion
Length 'F'
Combined Ordering Reference
(*Brass Metric)
ShroudCable
Gland
Weight
(Kgs)
Grooved Cone (X)Stepped Cone (W)
MetricThread Length
(Metric) 'E'
MaxMaxMaxMinMaxMaxMaxMaxMaxSizeTypeOrdering
Suffix
20S16M2010.08.76.113.10.31.00.81.2530.533.665.020S16C2KGP1RAPVC060.23
20SM2010.011.79.515.90.31.00.81.2530.533.662.020SC2KGP1RAPVC060.22
20M2010.014.012.520.90.41.00.81.2530.533.663.020C2KGP1RAPVC060.22
25SM2510.020.014.022.00.41.21.251.637.541.369.525SC2KGP1RAPVC090.35
25M2510.020.018.226.20.41.21.251.637.541.369.525C2KGP1RAPVC090.35
32M3210.026.323.733.90.41.21.62.046.050.675.032C2KGP1RAPVC110.55
40M4015.032.227.940.40.41.61.62.055.060.575.040C2KGP1RAPVC150.75
50SM5015.038.235.246.70.41.62.02.560.066.077.050SC2KGP1RAPVC180.86
50M5015.044.140.453.00.61.62.02.570.177.177.050C2KGP1RAPVC211.13
63SM6315.050.045.659.40.61.62.02.575.082.580.063SC2KGP1RAPVC231.33
63M6315.056.054.665.80.61.62.02.580.088.080.063C2KGP1RAPVC251.34
75SM7515.062.059.072.00.61.62.02.590.099.087.075SC2KGP1RAPVC282.02
75M7515.068.066.778.40.61.62.53.0100.0100.088.075C2KGP1RAPVC302.48
90M9024.080.076.290.30.81.63.154.0115.0126.5102.090C2KGP1RAPVC323.52
100M10024.091.086.1101.40.81.63.154.0127.0139.7114.0114C2KGP1RALSF334.57
115M11524.098.0101.5110.20.81.63.154.0133.4133.4146.7114C2KGP1RALSF346.50
130M13024.0115.0110.2123.20.81.63.154.0152.4152.4167.6114C2KGP1RALSF358.50
Dimensions displayed in millimeters unless otherwise stated

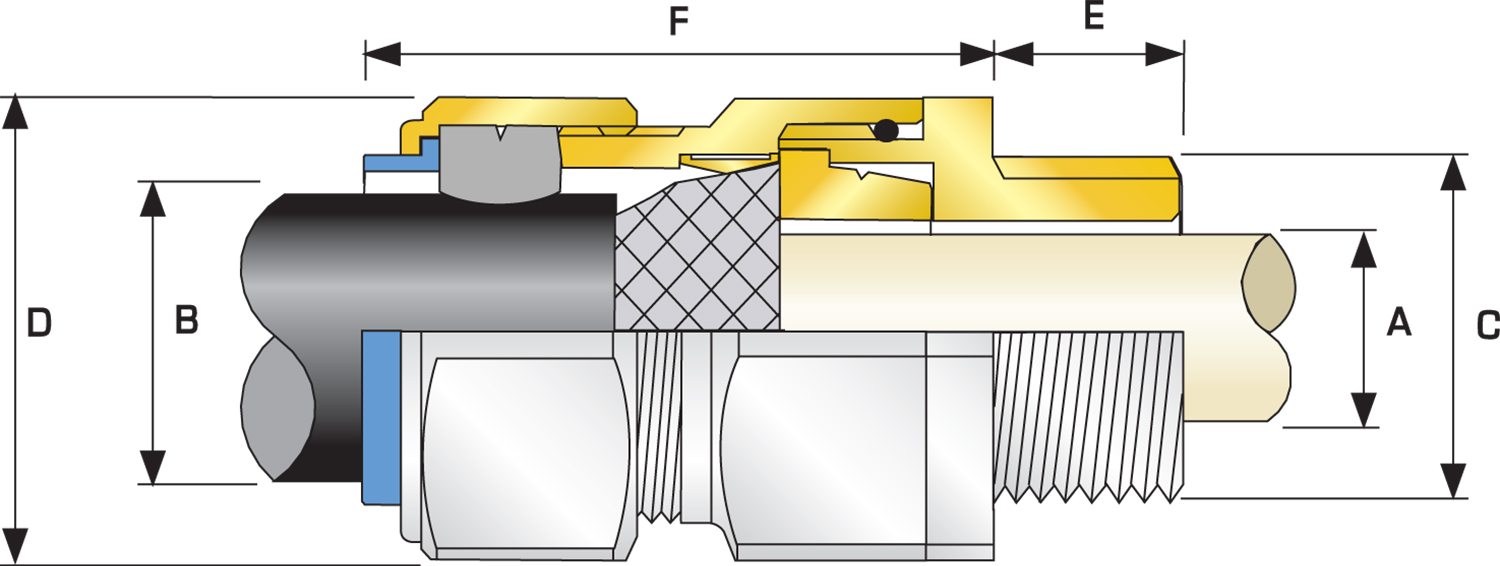

Technical Illustration
