E1X | Industrial Cable Gland For Braid & Steel Tape Armoured Cables
We'd like to keep in touch
We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

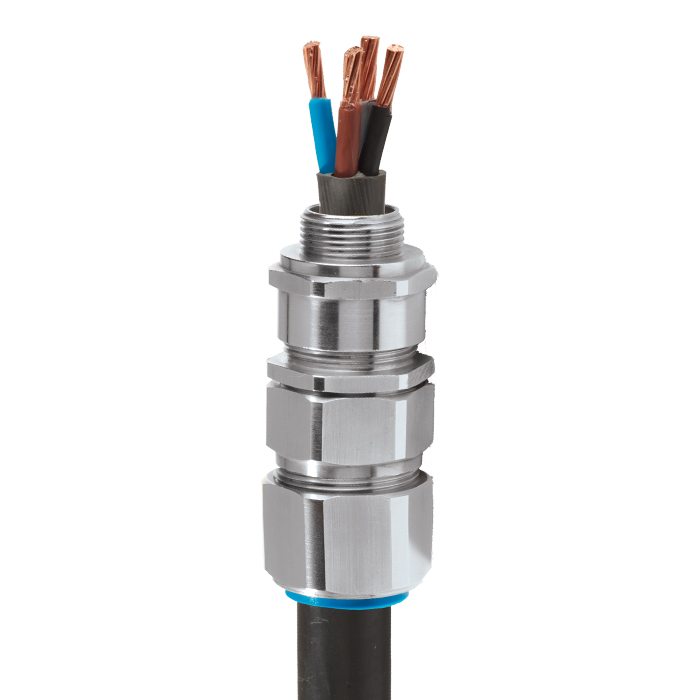

Double Seal Industrial Cable Gland
• Metal-to-metal armour clamping
• Direct & remote installation
• Permanently crimped, low impedance earth termination
• Secure against self-loosening
• Displacement type inner seal
• Controlled outer ‘load retention’ seal
• Unique OSTG prevents overtightening
• Designed to prevent Coldflow
• Deluge protection option
• -60°C to +130°C
• EMC tested
| Design Specification | BS 6121:Part 1:1989, IEC 62444, EN 62444 |
| Mechanical Classifications* | Impact = Level 8, Retention = Class D |
| Enclosure Protection | IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only |
| Electrical Classifications * | Category B (Category A when used with braid, tape or pliable wire armour cables) |
| GOST R Certificate | POCC.GB.HA46.H00140 |
| Marine Approvals | LRS: 01/00171 , ABS: 16-LD1472056-PDA |
| Ingress Protection Rating ** | IP66 as standard (IP67, IP68 available upon request) |
| Cable Gland Material | Brass, Electroless Nickel Plated Brass, Aluminium |
| Seal Material | CMP Thermoset Rubber |
| Cable Type | Wire Braid Armour, Screened Flexible (EMC) Wire Braid (e.g. CY / SY), Pliable Wire Armour (PWA), Steel Tape Armour (STA), Aluminium Strip Armour (e.g. ASA) |
| Armour Clamping | Detachable Armour Cone & AnyWay Universal Clamping Ring |
| Sealing Technique | CMP Inner Displacement Seal & Unique CMP ‘LRS’ TM Outer Load Retention Seal |
| Sealing Area(s) | Cable Inner Bedding & Outer Cable Sheath |
| Optional Accessories | Locknuts, Earth Tags, Serrated Washers, Entry Thread Seals, Shrouds,Ingress Discs |
| Optional Installation Tools | Spanners |
Note : * Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444
** Refer to Maintaining a Seal for further information on Ingress Protection Ratings
Certificates
Product Selection Table
Click here to view how to order

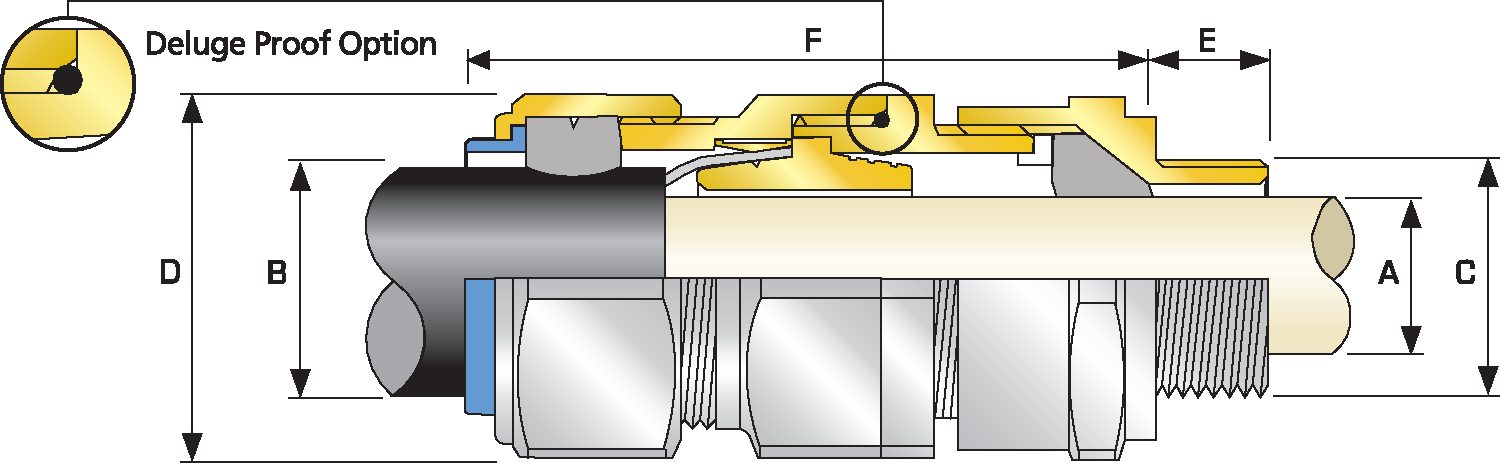

| Cable Gland Size | Available Entry Threads 'C' (Alternate Metric Thread Lengths Available) | Cable Bedding Diameter 'A' | Overall Cable Diameter 'B' | Armour Range | Across Flats 'D' | Across Corners 'D' | Protrusion Length 'F' | Combined Ordering Reference (*Brass Metric) | Shroud | Cable Gland Weight (Ozs) |
|||||||||
| Standard | Option | ||||||||||||||||||
| Metric | Thread Length (Metric) 'E' | NPT | Thread Length (NPT) 'E' | NPT | Min | Max | Min | Max | Min | Max | Max | Max | Size | Type | Ordering Suffix |
||||
| 20s16 | M20 | 0.39 | 1/2' | 0.78 | 3/4' | 0.12 | 0.34 | 0.24 | 0.52 | 0.01 | 0.04 | 0.94 | 1.04 | 2.85 | 20S16 | E1X | 1RA | PVC04 | 5.75 |
| 20S | M20 | 0.39 | 1/2' | 0.78 | 3/4' | 0.24 | 0.46 | 0.37 | 0.63 | 0.01 | 0.04 | 0.94 | 1.04 | 2.76 | 20S | E1X | 1RA | PVC04 | 5.29 |
| 20 | M20 | 0.39 | 1/2' | 0.78 | 3/4' | 0.26 | 0.55 | 0.49 | 0.82 | 0.02 | 0.04 | 1.20 | 1.32 | 2.87 | 20 | E1X | 1RA | PVC06 | 7.41 |
| 25S | M25 | 0.39 | 3/4' | 0.80 | 1' | 0.44 | 0.78 | 0.55 | 0.87 | 0.02 | 0.05 | 1.48 | 1.63 | 3.50 | 25S | E1X | 1RA | PVC09 | 11.64 |
| 25 | M25 | 0.39 | 3/4' | 0.80 | 1' | 0.44 | 0.78 | 0.72 | 1.03 | 0.02 | 0.05 | 1.48 | 1.63 | 3.50 | 25 | E1X | 1RA | PVC09 | 11.64 |
| 32 | M32 | 0.39 | 1' | 0.98 | 1 1/4' | 0.67 | 1.03 | 0.93 | 1.33 | 0.02 | 0.05 | 1.81 | 1.99 | 3.39 | 32 | E1X | 1RA | PVC11 | 15.17 |
| 40 | M40 | 0.59 | 1 1/4' | 1.01 | 1 1/2' | 0.87 | 1.26 | 1.10 | 1.59 | 0.02 | 0.06 | 2.17 | 2.38 | 3.54 | 40 | E1X | 1RA | PVC15 | 21.87 |
| 50S | M50 | 0.59 | 1 1/2' | 1.03 | 2' | 1.16 | 1.50 | 1.39 | 1.84 | 0.02 | 0.06 | 2.36 | 2.60 | 3.58 | 50S | E1X | 1RA | PVC18 | 26.46 |
| 50 | M50 | 0.59 | 2' | 1.06 | 2 1/2' | 1.40 | 1.73 | 1.59 | 2.09 | 0.02 | 0.06 | 2.76 | 3.04 | 3.74 | 50 | E1X | 1RA | PVC21 | 33.51 |
| 63S | M63 | 0.59 | 2' | 1.06 | 2 1/2' | 1.58 | 1.96 | 1.80 | 2.34 | 0.02 | 0.06 | 2.95 | 3.25 | 4.02 | 63S | E1X | 1RA | PVC23 | 47.27 |
| 63 | M63 | 0.59 | 2 1/2' | 1.57 | 3' | 1.86 | 2.20 | 2.15 | 2.59 | 0.02 | 0.06 | 3.15 | 3.46 | 4.09 | 63 | E1X | 1RA | PVC25 | 47.27 |
| 75S | M75 | 0.59 | 2 1/2' | 1.57 | 3' | 2.08 | 2.44 | 2.32 | 2.83 | 0.02 | 0.06 | 3.54 | 3.90 | 4.53 | 75S | E1X | 1RA | PVC28 | 74.43 |
| 75 | M75 | 0.59 | 3' | 1.63 | 3 1/2' | 2.33 | 2.67 | 2.63 | 3.09 | 0.02 | 0.06 | 3.94 | 4.33 | 4.61 | 75 | E1X | 1RA | PVC30 | 85.36 |
| 90 | M90 | 0.94 | 3 1/2' | 1.69 | 4' | 2.62 | 3.09 | 3.00 | 3.56 | 0.03 | 0.06 | 4.50 | 4.94 | 5.79 | 90 | E1X | 1RA | PVC32 | 148.5 |
| 100 | M100 | 0.94 | 4' | 1.73 | 5' | 2.99 | 3.58 | 3.39 | 3.99 | 0.03 | 0.06 | 4.84 | 5.33 | 5.51 | 100 | E1X | 1RA | LSF33 | 156.97 |
| 115 | M115 | 0.94 | 4' | 1.73 | 5' | 3.39 | 3.85 | 4.00 | 4.34 | 0.03 | 0.06 | 5.25 | 5.78 | 6.38 | 115 | E1X | 1RA | LSF34 | 218.35 |
| 130 | M130 | 0.94 | 5' | 1.84 | 6' | 3.82 | 4.52 | 4.34 | 4.85 | 0.03 | 0.06 | 6.00 | 6.60 | 6.85 | 130 | E1X | 1RA | LSF35 | 294.19 |
| Dimensions displayed in inches unless otherwise stated | |||||||||||||||||||
| Cable Gland Size | Available Entry Threads 'C' (Alternate Metric Thread Lengths Available) | Cable Bedding Diameter 'A' | Overall Cable Diameter 'B' | Armour Range | Across Flats 'D' | Across Corners 'D' | Protrusion Length 'F' | Combined Ordering Reference (*Brass Metric) | Shroud | Cable Gland Weight (Kgs) |
|||||||||
| Standard | Option | ||||||||||||||||||
| Metric | Thread Length (Metric) 'E' | NPT | Thread Length (NPT) 'E' | NPT | Min | Max | Min | Max | Min | Max | Max | Max | Size | Type | Ordering Suffix |
||||
| 20s16 | M20 | 10.0 | 1/2' | 19.9 | 3/4' | 3.1 | 8.6 | 6.1 | 13.1 | 0.3 | 1.0 | 24.0 | 26.4 | 72.5 | 20S16 | E1X | 1RA | PVC04 | 0.16 |
| 20S | M20 | 10.0 | 1/2' | 19.9 | 3/4' | 6.1 | 11.6 | 9.5 | 15.9 | 0.3 | 1.0 | 24.0 | 26.4 | 70.0 | 20S | E1X | 1RA | PVC04 | 0.15 |
| 20 | M20 | 10.0 | 1/2' | 19.9 | 3/4' | 6.5 | 13.9 | 12.5 | 20.9 | 0.4 | 1.0 | 30.5 | 33.6 | 73.0 | 20 | E1X | 1RA | PVC06 | 0.21 |
| 25S | M25 | 10.0 | 3/4' | 20.2 | 1' | 11.1 | 19.9 | 14.0 | 22.0 | 0.4 | 1.2 | 37.5 | 41.3 | 89.0 | 25S | E1X | 1RA | PVC09 | 0.33 |
| 25 | M25 | 10.0 | 3/4' | 20.2 | 1' | 11.1 | 19.9 | 18.2 | 26.2 | 0.4 | 1.2 | 37.5 | 41.3 | 89.0 | 25 | E1X | 1RA | PVC09 | 0.33 |
| 32 | M32 | 10.0 | 1' | 25.0 | 1 1/4' | 17.0 | 26.2 | 23.7 | 33.9 | 0.4 | 1.2 | 46.0 | 50.6 | 86.0 | 32 | E1X | 1RA | PVC11 | 0.43 |
| 40 | M40 | 15.0 | 1 1/4' | 25.6 | 1 1/2' | 22.0 | 32.1 | 27.9 | 40.4 | 0.4 | 1.6 | 55.0 | 60.5 | 90.0 | 40 | E1X | 1RA | PVC15 | 0.62 |
| 50S | M50 | 15.0 | 1 1/2' | 26.1 | 2' | 29.5 | 38.1 | 35.2 | 46.7 | 0.4 | 1.6 | 60.0 | 66.0 | 91.0 | 50S | E1X | 1RA | PVC18 | 0.75 |
| 50 | M50 | 15.0 | 2' | 26.9 | 2 1/2' | 35.6 | 44.0 | 40.4 | 53.0 | 0.6 | 1.6 | 70.1 | 77.1 | 95.0 | 50 | E1X | 1RA | PVC21 | 0.95 |
| 63S | M63 | 15.0 | 2' | 26.9 | 2 1/2' | 40.1 | 49.9 | 45.6 | 59.4 | 0.6 | 1.6 | 75.0 | 82.5 | 102.0 | 63S | E1X | 1RA | PVC23 | 1.34 |
| 63 | M63 | 15.0 | 2 1/2' | 39.9 | 3' | 47.2 | 55.9 | 54.6 | 65.8 | 0.6 | 1.6 | 80.0 | 88.0 | 104.0 | 63 | E1X | 1RA | PVC25 | 1.34 |
| 75S | M75 | 15.0 | 2 1/2' | 39.9 | 3' | 52.8 | 61.9 | 59.0 | 72.0 | 0.6 | 1.6 | 90.0 | 99.0 | 115.0 | 75S | E1X | 1RA | PVC28 | 2.11 |
| 75 | M75 | 15.0 | 3' | 41.5 | 3 1/2' | 59.1 | 67.9 | 66.7 | 78.4 | 0.6 | 1.6 | 100.0 | 110.0 | 117.0 | 75 | E1X | 1RA | PVC30 | 2.42 |
| 90 | M90 | 24.0 | 3 1/2' | 42.8 | 4' | 66.6 | 78.6 | 76.2 | 90.3 | 0.8 | 1.6 | 114.3 | 125.4 | 147.0 | 90 | E1X | 1RA | PVC32 | 4.21 |
| 100 | M100 | 24.0 | 4' | 44.0 | 5' | 76.0 | 90.9 | 86.1 | 101.4 | 0.8 | 1.6 | 123.0 | 135.3 | 140.0 | 100 | E1X | 1RA | LSF33 | 4.45 |
| 115 | M115 | 24.0 | 4' | 44.0 | 5' | 86.0 | 97.9 | 101.5 | 110.2 | 0.8 | 1.6 | 133.4 | 146.7 | 162.0 | 115 | E1X | 1RA | LSF34 | 6.19 |
| 130 | M130 | 24.0 | 5' | 46.8 | 6' | 97.0 | 114.9 | 110.2 | 123.2 | 0.8 | 1.6 | 152.4 | 167.6 | 174.0 | 130 | E1X | 1RA | LSF35 | 8.34 |
| Dimensions displayed in millimeters unless otherwise stated | |||||||||||||||||||
Industry Standard Cable Gland Designations
Cable glands may be designed, tested and manufactured to various standards around the world, but as a long established UK-based manufacturer, part of CMP’s history includes close participation in the development of British Standards for these products.
Read moreCMP Ingress Protection Testing
Some CMP cable gland types have been tested to IP66, whilst other types have been tested to IP66, IP67 & IP68, to an equivalent depth of up to 60 metres for a duration of two weeks. For manufacturers to claim an IP68 protection level it is important that they include both the depth of water and time duration of the test conducted; otherwise the rating would be incomplete and meaningless.
Read moreCable Gland Sizing – Enlarged Cable Diameters
The CMP combination gland concept utilises the forward portion of one cable gland size andthe rear portion of the next cable gland size up (larger). This enables cable gland selection for braided or armoured cables where the difference between the inner bedding and outer sheath cannot be accommodated with a standard cable gland size. Combination cable glands for braided & armoured cables are available for both industrial and explosive atmospheres cable gland types with both inner and outer seals.
