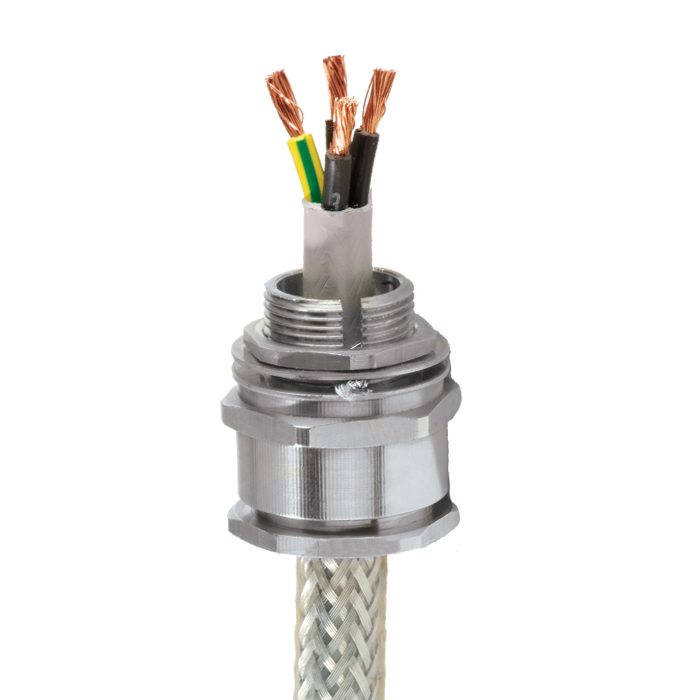

CXT | Single Seal Industrial Cable Gland For Screened Flexible (EMC) Wire Braid Cables

• Easy install
• Mechanical retention of wire braid for electrical continuity
• Displacement type seal
• Designed to prevent Coldflow
• -60°C to +130°C
• Superior EMC performance

Note: Supplied with Locknut & Washer

Design Specification BS 6121:Part 1:1989, IEC 62444, EN 62444
Mechanical Classifications * Impact = Level 8, Retention = Class B
Enclosure Protection IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
Electrical Classifications * Category A
GOST R Certificate POCC.GB.HA46.H00140
Ingress Protection Rating ** IP66
Cable Gland Material Brass, Electroless Nickel Plated Brass, Stainless Steel, Aluminium
Seal Material CMP Thermoset Rubber
Cable Type Screened Flexible (EMC) Wire Braid (e.g. CY / SY), Wire Braid Armour
Sealing Technique CMP Unique Displacement Seal Concept
Sealing Area(s) Cable Outer Sheath
Included Accessories Locknut & Washer
Optional Accessories Locknuts, Earth Tags, Serrated Washers, Entry Thread Seals, Shrouds,Ingress Discs
Optional Installation Tools Spanners

* Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444
** Refer to Maintaining a Seal for further information on Ingress Protection Ratings

Jump to technical illustration

Certificates

Click here to view Certificates

Product Selection Table

Click here to view how to order

Cable Gland SizeEntry Thread "C"Thread Length
(Metric) 'E'
Overall Cable Diameter
'A'
Across
Flats 'D'
Across
Corners
'D'
Protrusion
Length 'F'
Combined Ordering Reference
(*Brass Metric)
ShroudCable
Gland
Weight
(Kgs)
MinMaxMaxMaxSizeTypeOrdering
Suffix
20S16M200.590.130.340.941.041.0020S16CXT1RAPVC042.47
20SM200.590.240.460.941.041.0020SCXT1RAPVC042.12
20M200.590.260.551.061.171.0720CXT1RAPVC052.47
25M250.590.440.791.421.561.4325CXT1RAPVC094.59
32M320.590.671.041.611.781.3632CXT1RAPVC105.29
40M400.590.931.271.972.171.4040CXT1RAPVC137.41
50SM500.591.221.502.172.381.2750SCXT1RAPVC159.17
50M500.591.401.732.362.601.4450CXT1RAPVC189.52
63SM630.591.631.962.783.061.3263SCXT1RAPVC2114.46
63M630.591.862.202.953.251.4163CXT1RAPVC2314.11
75SM750.592.132.443.153.461.4575SCXT1RAPVC2518.70
75M750.592.412.673.313.641.6075CXT1RAPVC2617.64
90M900.942.623.154.254.682.3090CXT1RAPVC3156.44
100M1000.942.993.584.845.332.17100CXT1RALSF3362.79
115M1150.943.393.855.255.782.57115CXT1RALSF3494.18
130M1300.943.824.526.006.602.91130CXT1RALSF35134.04
Dimensions displayed in millimeters unless otherwise stated
Cable Gland SizeEntry Thread "C"Thread Length
(Metric) 'E'
Overall Cable Diameter
'A'
Across
Flats 'D'
Across
Corners
'D'
Protrusion
Length 'F'
Combined Ordering Reference
(*Brass Metric)
ShroudCable
Gland
Weight
(Kgs)
MinMaxMaxMaxSizeTypeOrdering
Suffix
20S16M2015.03.28.724.026.425.420S16CXT1RAPVC040.07
20SM2015.06.111.724.026.425.420SCXT1RAPVC040.06
20M2015.06.514.027.029.727.220CXT1RAPVC050.07
25M2515.011.120.036.039.636.325CXT1RAPVC090.13
32M3215.017.026.341.045.134.532CXT1RAPVC100.15
40M4015.023.532.250.055.035.640CXT1RAPVC130.21
50SM5015.031.038.255.060.532.350SCXT1RAPVC150.26
50M5015.035.644.060.066.036.650CXT1RAPVC180.27
63SM6315.041.549.970.577.633.563SCXT1RAPVC210.41
63M6315.047.255.975.082.535.863CXT1RAPVC230.40
75SM7515.054.061.980.088.036.875SCXT1RAPVC250.53
75M7515.061.167.984.092.440.675CXT1RAPVC260.50
90M9024.066.679.9108.0118.858.390CXT1RAPVC311.60
100M10024.076.091.0123.0135.355.2100CXT1RALSF331.78
115M11524.086.097.9133.4146.765.2115CXT1RALSF342.67
130M13024.097.0114.9152.4167.673.9130CXT1RALSF353.80
Dimensions displayed in millimeters unless otherwise stated

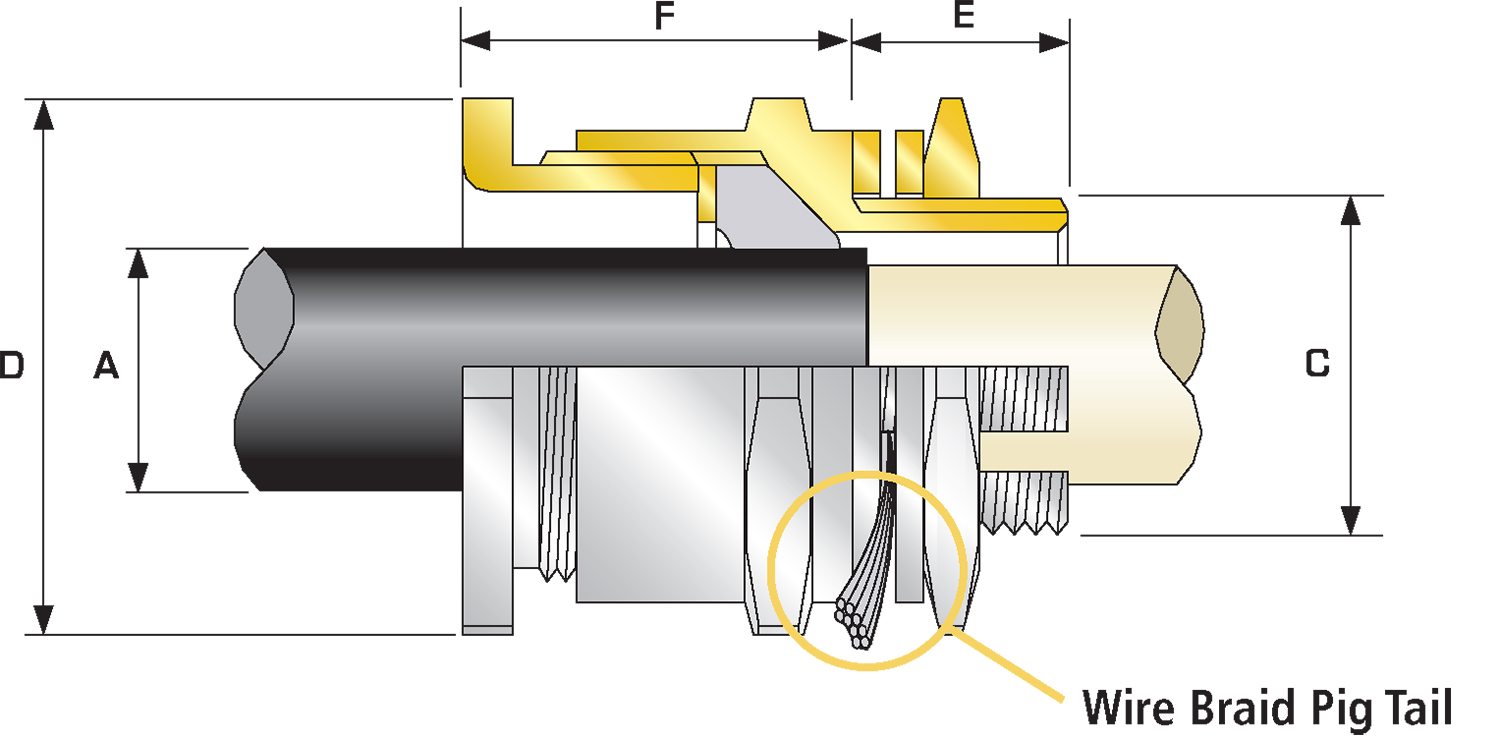

Technical Illustration

Additional Information

Protection by Enclosure Against Mechanical Impact

It is critically important that enclosures afford a level of mechanical protection relevant to the area of installation that provides optimum electrical and operational safety. The international standard IEC 62262 covering ‘Degrees of protection provided by enclosures for electrical equipment against external mechanical impacts (IK Code)’ outlines the requirements for testing and rating of enclosures of different materials, so that careful selection to suit the application can be achieved.

Read more

Ingress Protection to IEC 60529

Ingress Protection is applicable to all types of electrical and instrument enclosures, as well as cable glands, and is commonly abbreviated to ‘IP’ with additional digits which follow this abbreviation to define the level of environmental protection.

Read more

Cable Construction

One of the common assumptions when evaluating cables is that the cable will meet the defined IEC 60079-14 requirements and also be compact and circular. At the same time, the surface of the cable bedding may be assumed to be relatively smooth and consistent with the cable outer sheath. In fact this may be the case with some cables, but cables that are manufactured using particularly soft bedding materials, having a low tensile strength, offer a completely different surface finish. This is due to the fact that when cables are produced in high volume facilities, speed is of the essence in order to keep the unit costs down.

Read more
