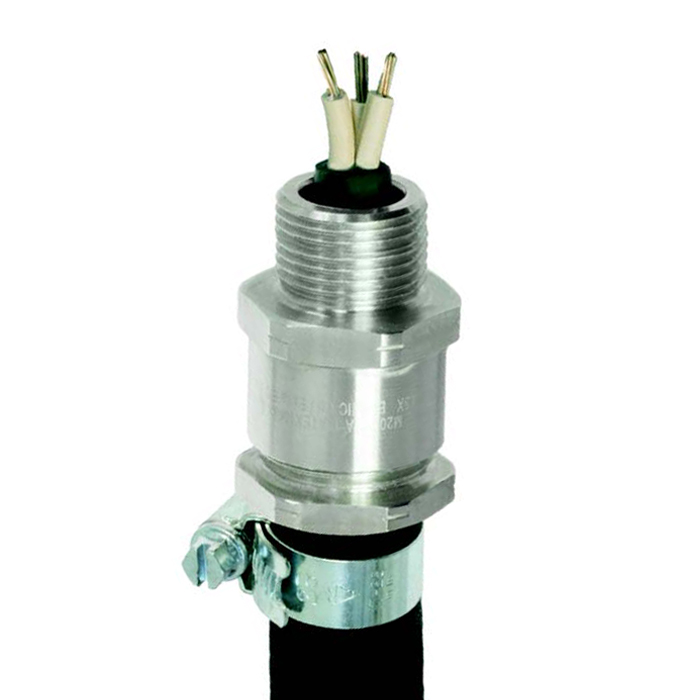

A2F100HC | Ex eb, Ex db, Ex nR, Ex ta | Group I & II Mining Cable Gland For all types of Unarmoured Cable & Enclosed within Hose for Mechanical Protection

We'd like to keep in touch

We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

No thanks, I'd just like to Download the datasheet.

The A2F100HC is designed and approved for use in Group I & II mining and non-mining applications, including QLD & NSW coal mining. This product is internationally marked ATEX and IECEx and has an operating temperature rating of -60˚C to +130˚C.

The A2F100HC complies 100% with IEC 60079-0 cable retention requirements with no ‘special conditions’ for safe use, this removes the need for a cable clamp or cleat before the point of entry where the cable gland is installed, saving installers time, and expense for project owners.

This product includes a hose connection facility to securely attach protective hose with a cable housed within, the cable is then securely sealed using a CMP displacement seal.

The A2F100HC flameproof displacement seal protects the equipment in the event of an explosion, whilst a wide sealing range is available for each cable gland size, meaning less requirement to purchase a large range of cable gland sizes.

The A2F100HC is manufactured from high quality durable materials to prevent corrosion in mining environments.

*Hose connection not liquid tight

Design Specification BS 6121:Part 1:1989, IEC 62444, EN 62444
Mechanical Classifications * Impact = Level 8, Cable Anchorage = Class B
Enclosure Protection IK10 to IEC 62262 (20 joules)
Ingress Protection Rating** IP66, IP67 & IP68***
Cable Gland Material Electroless Nickel Plated Brass
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer
Cable Type Unarmoured & enclosed within hose for mechanical protection
Sealing Technique CMP Displacement Seal
Sealing Area(s) Cable Outer Sheath
ATEX Certificate CML 18ATEX1307, CML 18ATEX4311
UKEX Certificate "CML 21UKEX1247,CML 21UKEX4248"
Code of Protection I M2 Ex db I Mb,
Ex eb I Mb
II 1D Ex ta IIIC Da,
II 2G Ex db IIC Gb,
Ex eb IIC Gb
Compliance Standards EN 60079-0,1,7,15,31
IECEx Certificate IECEx CML 18.0172, IECEx SIM 17.0010
Code of Protection Ex db IIC Gb, Ex eb IIC Gb,
Ex nRc IIC Gc, Ex ta IIIC Da,
Ex db I Mb, Ex eb I Mb
Compliance Standards IEC 60079-0,1,7,15,31
CCOE / PESO (India) Certificate Ex d: P548696, Ex e: P533772 Ex nR: P548695
CCC Certificate 2020322313003430
KCs Certificate Up to 1"
1” up to 2”
Above 2” up to 4”
Above 4”
Jump to technical illustration

Certificates

Click here to view Certificates

Product Selection Table

COMBINED ORDERING REFERENCEAVAILABLE ENTRY THREADS ‘C’OVERALL CABLE DIAMETER “A”HOSE SIZEACROSS FLATS “D”ACROSS CORNERS “D”PROTRUSION
LENGTH “F”		HOSE CONNECTION
LENGTH “G”		CABLE GLAND WEIGHT
(ozs)
SIZETYPEORDERING SUFFIXMETRICTHREAD LENGTH ‘E’MINMAX“H”MAXMAX
20S16A2F100HC161RAM200.590.130.310.630.941.041.830.634.62
20SA2F100HC161RAM200.590.260.440.630.941.041.890.633.99
20A2F100HC161RAM200.590.280.530.631.061.172.040.634.94
20A2F100HC191RAM200.590.280.530.751.061.172.200.794.94
20LA2F100HC191RAM200.590.340.550.751.061.172.140.794.87
25A2F100HC 251RAM250.590.450.770.981.421.562.651.068.47
25LA2F100HC191RAM250.590.550.790.751.421.562.361.308.32
25LA2F100HC251RAM250.590.550.790.981.421.562.631.068.40
32A2F100HC321RAM320.590.751.001.261.611.782.811.3010.55
32LA2F100HC251RAM320.590.801.040.981.611.782.461.0610.48
32LA2F100HC321RAM320.590.801.041.261.611.782.701.3010.41
40A2F100HC381RAM400.590.981.271.501.972.173.141.6115.17
50SA2F100HC511RAM500.591.221.502.012.172.383.762.1329.56
50A2F100HC511RAM500.591.401.732.012.362.603.932.1323.77
63SA2F100HC631RAM630.591.631.962.482.783.064.462.7647.69
63A2F100HC631RAM630.591.902.162.482.953.254.472.7636.40
75SA2F100HC761RAM750.592.132.442.993.313.645.393.6074.11
75A2F100HC761RAM750.592.412.672.993.313.645.533.6052.63
Dimensions are displayed in inches unless otherwise stated
COMBINED ORDERING REFERENCEAVAILABLE ENTRY THREADS ‘C’OVERALL CABLE DIAMETER “A”HOSE SIZEACROSS FLATS “D”ACROSS CORNERS “D”PROTRUSION
LENGTH “F”		HOSE CONNECTION
LENGTH “G”		CABLE GLAND WEIGHT
(kgs)
SIZETYPEORDERING SUFFIXMETRICTHREAD LENGTH ‘E’MINMAX“H”MAXMAX
20S16A2F100HC161RAM2015.03.28.016.024.026.446.4160.131
20SA2F100HC161RAM2015.06.511.216.024.026.447.9160.113
20A2F100HC161RAM2015.07.013.516.027.029.751.8160.1400
20A2F100HC191RAM2015.07.013.519.027.029.755.8200.140
20LA2F100HC191RAM2015.08.714.019.027.029.754.3200.138
25A2F100HC 251RAM2515.011.519.525.036.039.667.4270.240
25LA2F100HC191RAM2515.014.020.019.036.039.659.9200.236
25LA2F100HC251RAM2515.014.020.025.036.039.666.9270.238
32A2F100HC321RAM3215.019.025.532.041.045.171.5330.299
32LA2F100HC251RAM3215.020.226.325.041.045.162.5270.297
32LA2F100HC321RAM3215.020.226.332.041.045.168.5330.295
40A2F100HC381RAM4015.025.032.238.050.055.079.8410.430
50SA2F100HC511RAM5015.031.038.251.055.060.595.4540.838
50A2F100HC511RAM5015.035.644.051.060.066.099.8540.674
63SA2F100HC631RAM6315.041.549.963.070.577.6113.3701.352
63A2F100HC631RAM6315.048.254.963.07582.5113.6701.032
75SA2F100HC761RAM7515.054.061.976.08492.4136.991.52.101
75A2F100HC761RAM7515.061.167.976.08492.4140.591.51.492
Dimensions are displayed in millimetres unless otherwise stated

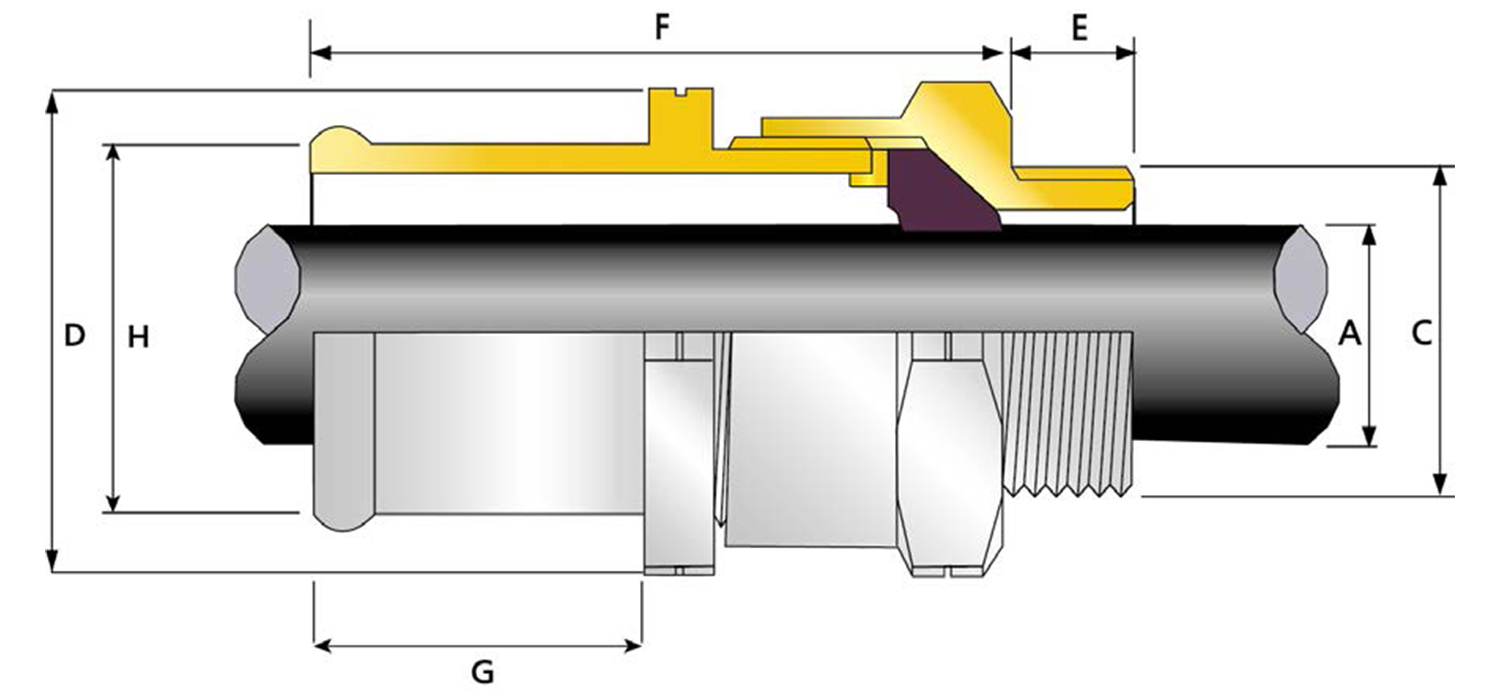

Technical Illustration
