TSPV0 | UL94 V-0 | Strain Relief Plastic Cable Gland For all Types of Unarmoured & Braided / Screened Cables

We'd like to keep in touch

We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

No thanks, I'd just like to Download the datasheet.

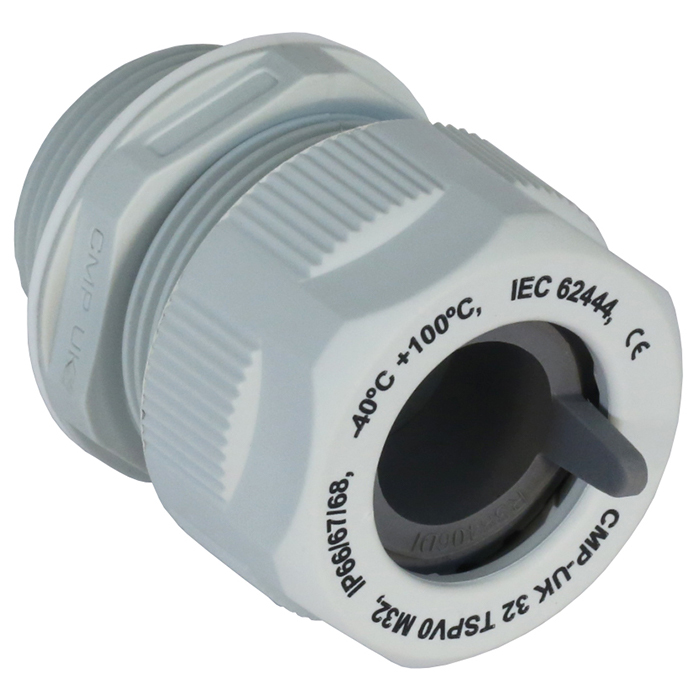

The TSPV0 is an industrial strain relief cable gland which can be used with all types of unarmoured and braided cables, and has a temperature rating of +100°c to -40°c.

For use in the construction of public buildings including tower blocks, airports, hospitals, stadia, and for essential services including, fire safety systems, rail infrastructure, tunnels and ventilation systems, where halogen-free cables are required.

Features include:

  • Halogen and phosphorus free
  • Extremely flame retardant and self-extinguishing according to UL94 V-0
  • Incorporates CMP’s trusted SOLO technology
  • 3rd party certified to IEC/EN 62444
  • Finger-locking seal provides superior cable retention & strain relief
  • Low weight with high stiffness & strength
  • Widest cable range take for any comparable cable gland
  • Available in a variety of colours (see table to the left)
  • Approved entry thread sealing washer included
  • Polyamide locknut available (ordering suffix 2TN) – delivered assembled

Tightening tools may be required to aid installation. For further information, please click here.

Design Specification IEC 62444, EN 62444 (EN Metric only)
Mechanical Classifications* High impact resistance, contact CMP
Enclosure Protection High impact resistance, contact CMP
Ingress Protection Rating** IP66, IP67, IP68**, IP69 & IP69K
Flame Retardancy Glow Wire Test – EN/IEC 60695-2: 960°C
Flammability Test – EN/IEC 60695-11-10 / UL94: V-0
Cable Gland Material UL94 V-0 Halogen and phosphorus-free flame retardant polyamide
Seal Material CMP SOLO LSF Halogen-free Thermoset Elastomer
Cable Type Unarmoured & Braided (when braid is terminated inside enclosure)
Sealing Technique CMP Unique finger-locking type seal
Sealing Area(s) Cable Outer Sheath

* Mechanical classifications applied as per IEC/EN 62444
** IP68 tested to 300 kPa for 16 hours (equivalent to 30 metres water depth)

Jump to technical illustration

Click here to view how to order

Dual Seal Available Entry Threads 'C'Overall Cable Diameter 'A'Across Flats 'D'Across Corners 'D'Protrusion Length 'B'
StandardOption
Cable Gland OnlyCable Gland with LocknutMetricThread Length (Metric) 'E'Long Thread Length (Metric) 'E'NPTThread Length (NPT) 'E'MinMaxMaxMax
16DTSPV01TA16DTSPV02TNM169.015.03⁄8”11.03.010.019.020.927.0
20DTSPV01TA20DTSPV02TNM2010.015.01⁄2”14.05.014.024.026.230.5
25DTSPV01TA25DTSPV02TNM2510.015.03⁄4”15.09.018.030.032.736.0
32DTSPV01TA32DTSPV02TNM3212.015.01”18.012.524.840.043.641.0
40DTSPV01TA40DTSPV02TNM4012.018.01 1⁄4”18.019.032.050.054.549.0
50DTSPV01TA50DTSPV02TNM5012.018.01 1⁄2”19.022.038.058.063.259.0
63DTSPV01TA63DTSPV02TNM6315.018.02”20.028.048.068.074.164.0
Standard SealAvailable Entry Threads 'C'Overall Cable Diameter 'A'Across Flats 'D'Across Corners 'D'Protrusion Length 'B'
StandardOption
Cable Gland OnlyCable Gland with LocknutMetricThread Length (Metric) 'E'Long Thread Length (Metric) 'E'NPTThread Length (NPT) 'E'MinMaxMaxMax
12TSPV01TA12TSPV02TNM129.015.01⁄4”11.03.06.515.016.427.0
16STSPV01TA16STSPV02TNM169.015.03⁄8”11.03.07.019.020.927.0
16TSPV01TA16TSPV02TNM169.015.03⁄8”11.06.010.019.020.927.0
20STSPV01TA20STSPV02TNM2010.015.01⁄2”14.05.010.024.026.230.5
20TSPV01TA20TSPV02TNM2010.015.01⁄2”14.09.014.024.026.230.5
25STSPV01TA25STSPV02TNM2510.015.03⁄4”15.09.015.530.032.736.0
25TSPV01TA25TSPV02TNM2510.015.03⁄4”15.012.518.030.032.736.0
32STSPV01TA32STSPV02TNM3212.015.01”18.012.519.040.043.641.0
32TSPV01TA32TSPV02TNM3212.015.01”18.017.024.840.043.641.0
40STSPV01TA40STSPV02TNM4012.018.01-1⁄4”18.019.027.050.054.549.0
40TSPV01TA40TSPV02TNM4012.018.01-1⁄4”18.024.032.050.054.549.0
50STSPV01TA50STSPV02TNM5012.018.01-1⁄2”19.022.032.058.063.259.0
50TSPV01TA50TSPV02TNM5012.018.01-1⁄2”19.028.038.058.063.259.0
63STSPV01TA63STSPV02TNM6315.018.02”20.028.039.068.074.164.0
63TSPV01TA63TSPV02TNM6315.018.02”20.037.048.068.074.164.0
For NPT threads add a ‘T’ to the suffix e.g. 16DTSPV01TAT (3⁄8” NPT, black), 40DTSPV01TAT1 (1 1⁄4” NPT, grey (silver))
For long metric threads add an ‘L’ to the suffix e.g. 16DTSPV01TAL (M16, black with 15mm length of entry thread).
Dimensions are displayed in millimetres unless otherwise stated.

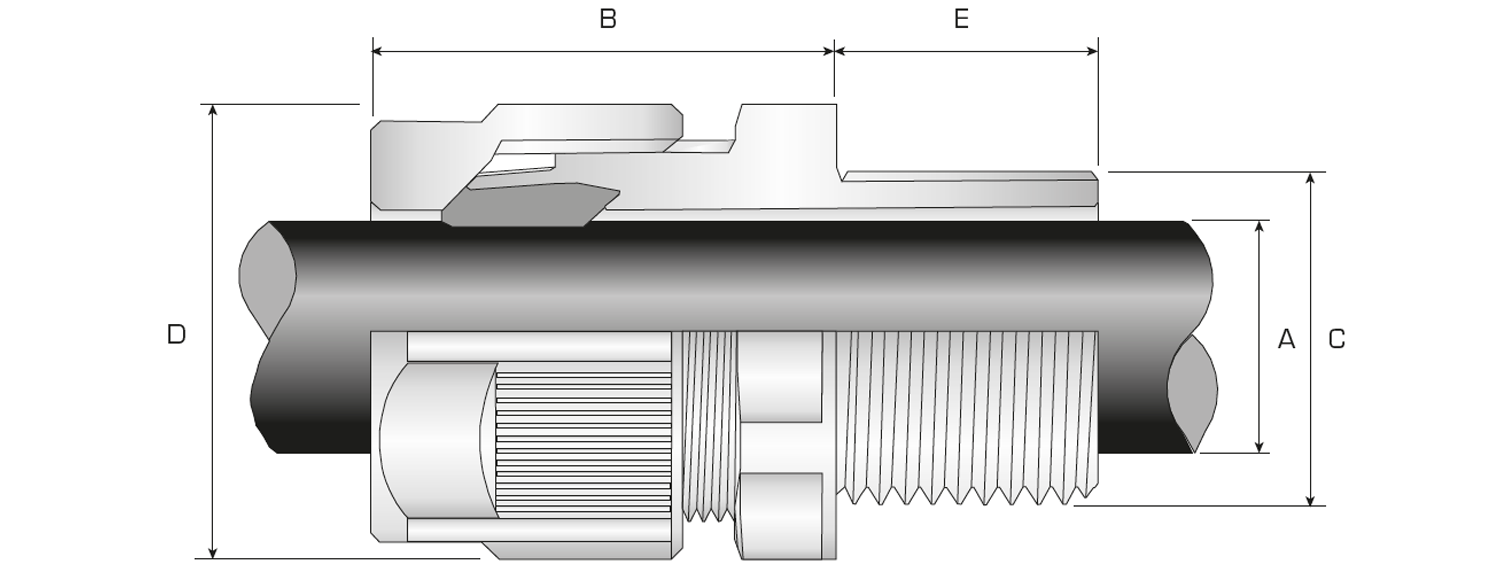

Technical Illustration
