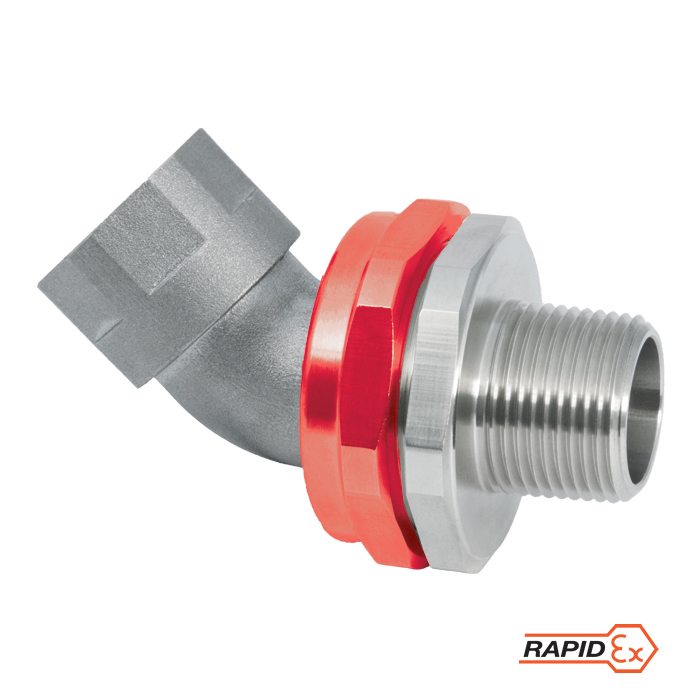

PX784REX | 45° Degree RapidEx Barrier Swivel Unions Available in brass, nickel plated brass, aluminum, stainless steel

Description

Technical

45° Swivel Union, Globally Approved, Explosive Atmosphere Barrier Cable / Conduit Accessory

Design Specification	BS 6121:Part 1:1989
Enclosure Protection	IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
ATEX Certificate	CML 18ATEX1329U
Code of Protection	II 2G 1D Ex db IIC Gb, Ex eb IIC Gb, Ex ta IIIC Da IP6X IM2 Ex db I Mb / Ex eb I Mb
IECEx Certificate	IECEx CML 18.0186U
Code of Protection	Ex db IIC Gb, Ex eb IIC Gb, Ex ta IIIC Da IP6X, Ex db I Mb, Ex eb I Mb
cCSAus Certificate	1055233
Code of Protection	Class I, Div 1 & 2, Groups A,B,C,D ; Enclosure type 4X : Class I, Zone 1, AEx de II ; Ex de II

Click here to view how to order

RapidEx Example Ordering Reference	Epoxy Compound Example Ordering Reference	First Thread Size	Second Thread Size
PX784REX1EXDM2M25	PX784DM2M25	M20 X 1.5	M20 X 1.5
PX784REX1EXDM3M35	PX784DM3M35	M25 X 1.5	M25 X 1.5
PX784REX1EXDM4M45	PX784DM4M45	M32 X 1.5	M32 X 1.5
PX784REX1EXDM5M55	PX784DM5M55	M40 X 1.5	M40 X 1.5
PX784REX1EXDT1T15	PX784DT1T15	½”	½”
PX784REX1EXDT2T25	PX784DT2T25	¾”	¾”
PX784REX1EXDT1M25	PX784DT1M25	½”	M20 X 1.5
PX784REX1EXDT2M35	PX784DT2M35	¾”	M25 X 1.5
Dimensions displayed in inches unless otherwise stated
Alternative threads available

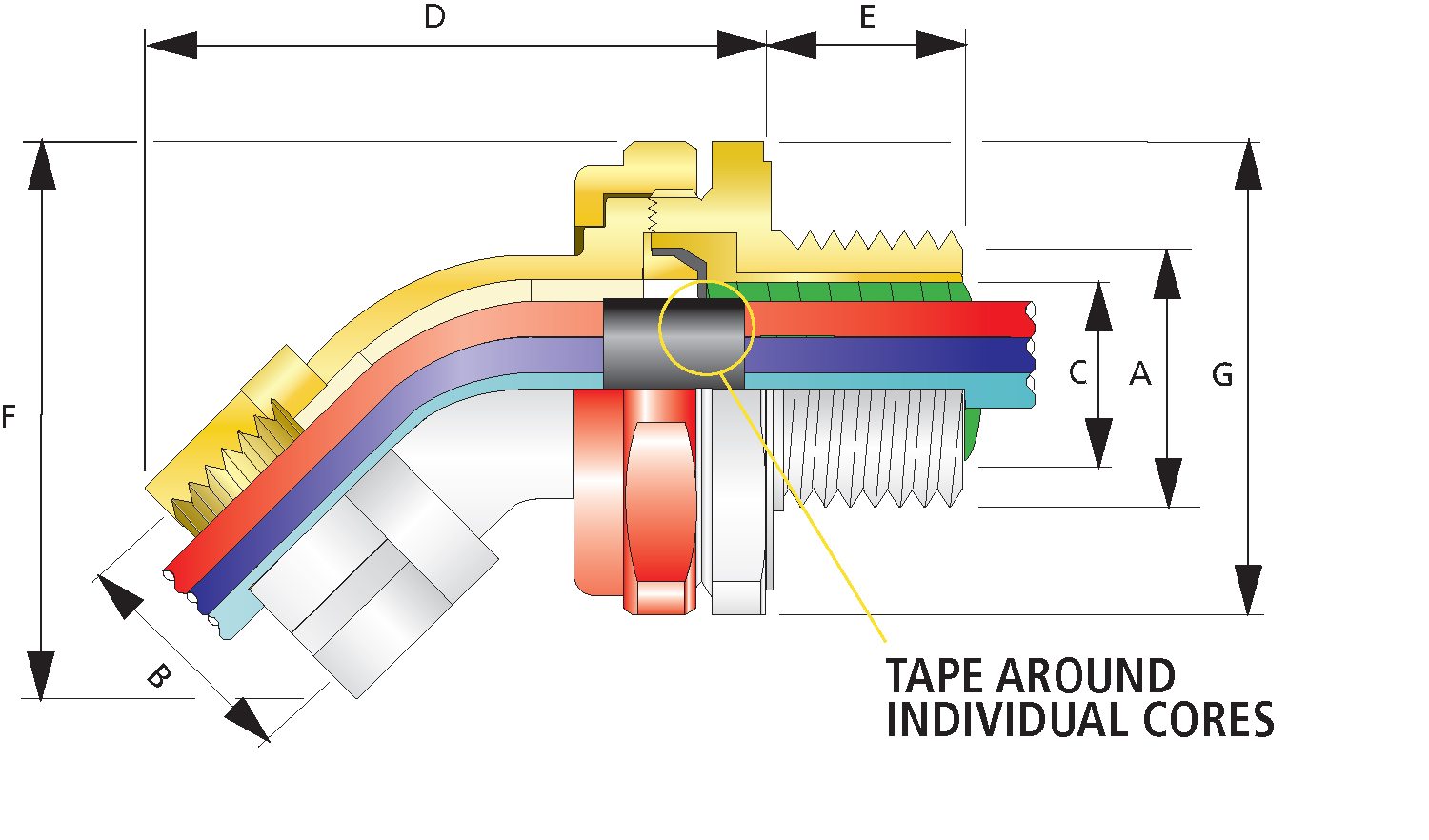

Technical Illustration
